MECHANICALLY OPERATED VALVE
Mfr. Part No.:
138-955
APT Stock No.:
CMZ-138-955
Brand:
CAMOZZI
Currently Unavailable – Back Order Required
Subtotal (1 unit)**
GHS 739.20
(Exc. VAT)
GHS 901.08
(Inc. VAT)
Available For Back Order
Out of stock? No worries! You can back order this product.
To request a back order:
- Tap the Request Back Order button below
- Fill out the form with your Name, Email, Phone, and Company
Our team will review your request and contact you with availability and lead time.
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
These mechanically operated valves have been designed with three different types of actuation: - plunger - lever/roller - unidirectional lever/roller In each case, return is triggered by a mechanical spring. 3/2-way monostable valves Series 3 are normally closed in the rest position when pressure is supplied in 1 and are normally open when pressure is supplied on connection 3, the user port 2 remaining unchanged. 5/2-way valves Series 3 can be supplied via the ports 3 and 5 with two different pressures if a cylinder has to be operated using a delivery pressure which is different from the return pressure.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main Specs | |
|---|---|
| NAME OF SERIES | 1 |
| RESETTING | Spring return |
| ACTUATION | Lever/roller |
| PORTS | G1/8 |
| FUNCTION | 3/2 ways NC |
| General Specs for Mechanically operated valves | |
|---|---|
| Construction | Spool-type (Series 3), poppet-type (Series 1) |
| Valve group | 3/2, 5/2 way/pos. |
| Materials | Aluminium body, brass poppet, stainless steel spool, NBR seals |
| Ports | G1/8, G1/4 |
| Ambient temperature | 0°C ÷ 60°C |
| Medium temperature | 0°C ÷ 50°C |

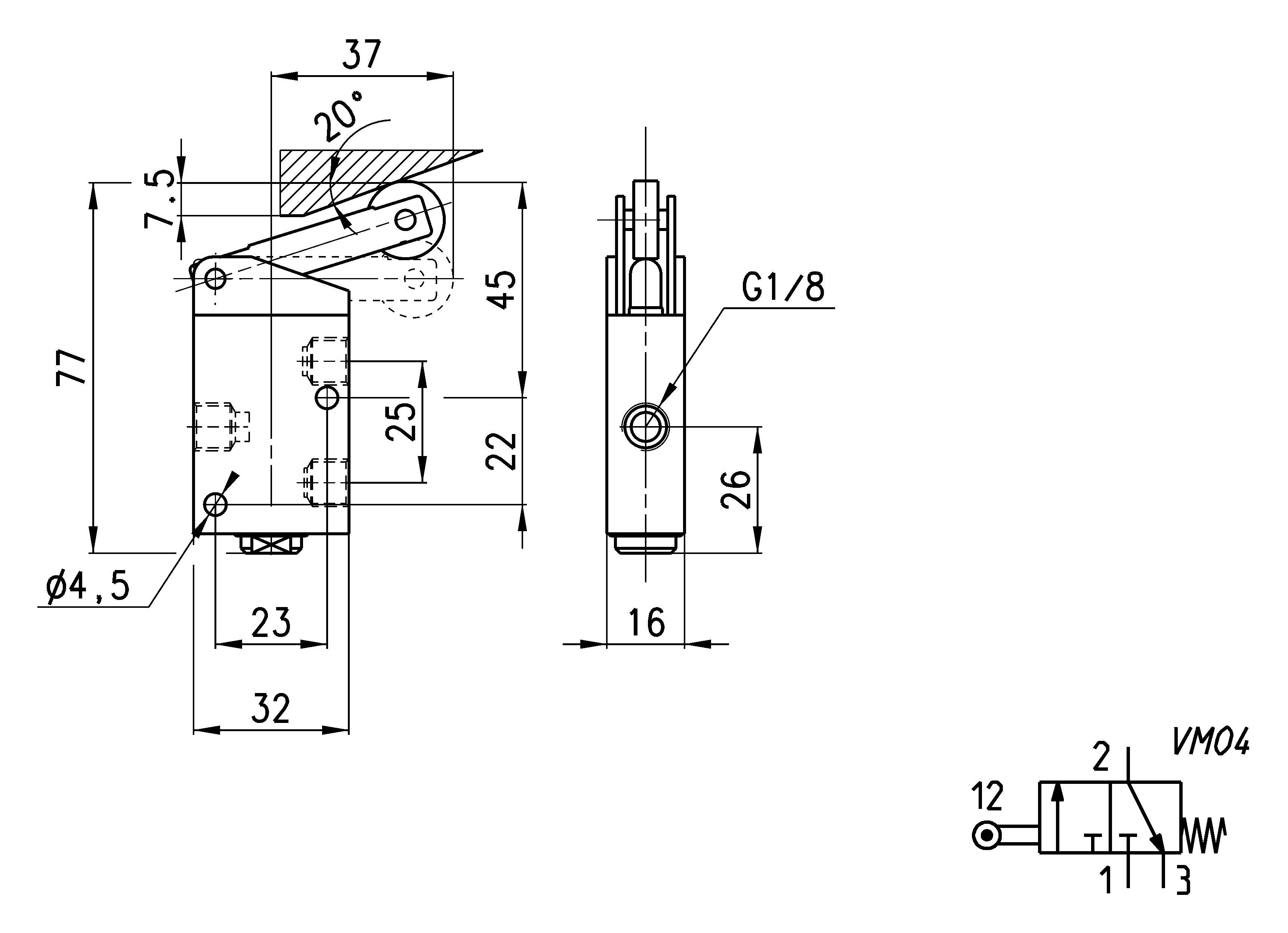

Dimensions Drawings
