Name: 24N2A25A100 - MINI PISTON 24N 2A 25A 0100 | CAMOZZI
Brand: CAMOZZI
SKU: CMZ-24N2A25A100
Price: 1193.25 GHS
Availability: InStock
Rating: 4.3 (53 reviews)

View allMini Cylinders

MINI PISTON 24N 2A 25A 0100

Mfr. Part No.:

24N2A25A100

APT Stock No.:

CMZ-24N2A25A100

Brand:

CAMOZZI

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

GHS 1,193.25

(Exc. VAT)

GHS 1,431.90

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Description

Series 16, 23, 24 and 25 mini-cylinders are designed according to ISO 6432. It is possible to choose from three different types of cushioning: mechanical (standard bumper on Series 16 and 24), adjustable pneumatic cushioning (Series 25) and pneumatic auto-cushioning (Series 23). This last version, thanks to a patented system, automatically adjusts the cushioning in order to provide optimal deceleration during the entire cushioning phase. The cylinder enjoys smooth, jolt-free movement, reducing vibrations and noise, while also guaranteeing high reliability and constant performance over time. The adopted technical solutions and the choice of materials have provided the basis for a complete range of versatile and very reliable mini-cylinders. They are suitable to be used in a multitude of industrial applications, especially where operating conditions undergo changes over time like for example wear of machine components. Various mounting accessories are available to fix the cylinders in different ways.

Documents

Product Datasheet

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Specifications

Main Specs
OPERATION	Double-acting
NAME OF SERIES	24
STROKE	100
CONSTRUCTION	Nose nut Mod. V + Piston rod lock nut Mod. U
MATERIALS	Rolled stainless steel AISI 303 rod, stainless steel AISI 304 tube, anodized AL end-blocks
VERSION	Standard
BORE	25

General Specs for Mini-Cylinders
Type of construction	crimped
Operation	single-acting and double-acting
Design	ISO 6432 (Ø8, 10, 12, 16, 20, 25, 32)
Materials	anodized aluminium end-caps - stainless steel barrel and rod, aluminium piston - NBR/PU seals, other parts: see the coding example
Brackets	rod end - flange - feet - trunnion
Stroking (min - max)	Ø8, 10 : 10 - 250 mm; Ø12 : 10 - 300 mm; Ø16 : 10 - 600 mm; Ø20, 25, 32 : 10 - 1000 mm

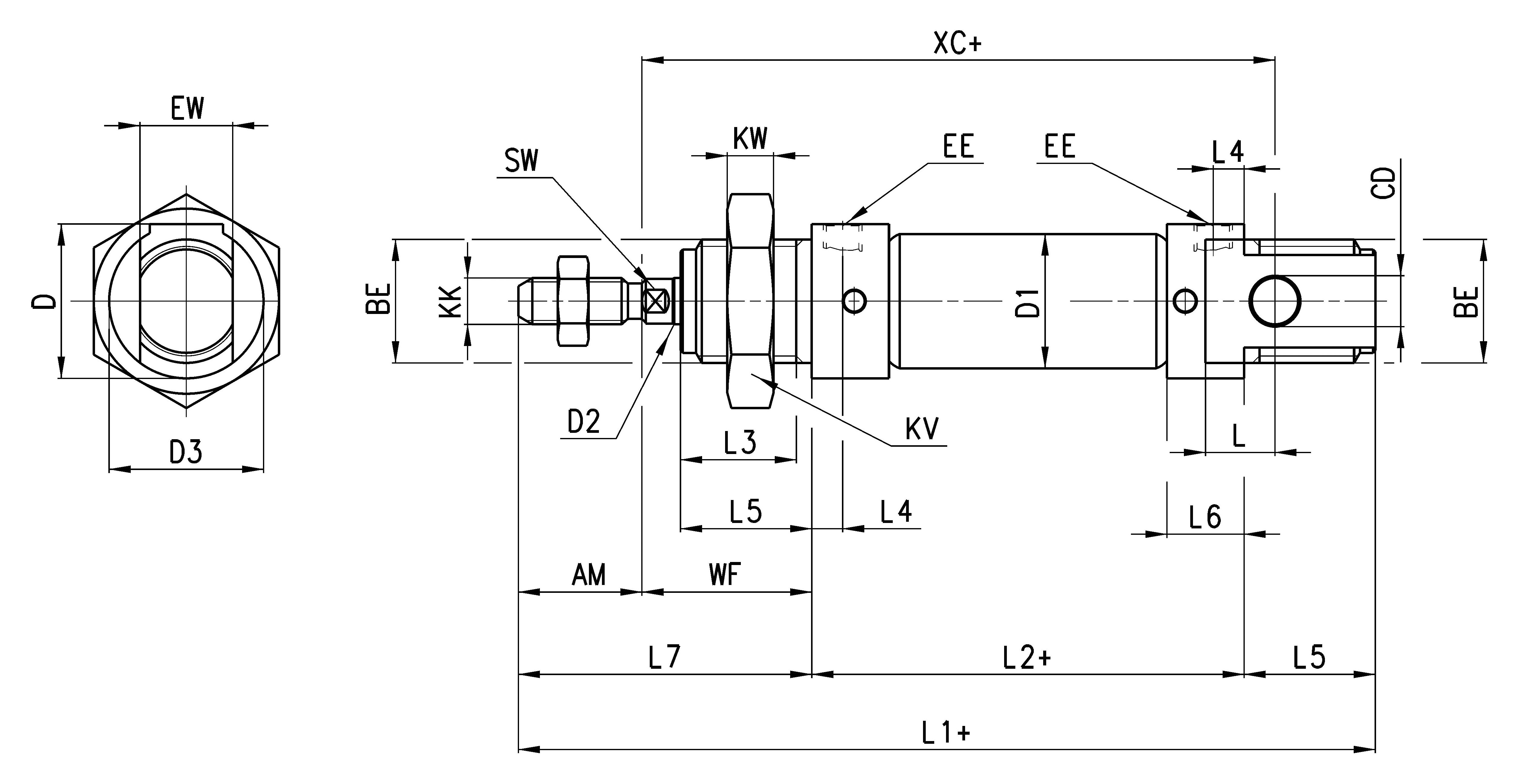

Dimensions

Need more information?

Check with our technical team!

MINI PISTON 24N 2A 25A 0100
