PNEUMATIC CTL VALVE 3BAR 3/2 MONOSTABLE 1/4
Mfr. Part No.:
334-035
APT Stock No.:
CMZ-334-035
Brand:
CAMOZZI
Currently Unavailable – Back Order Required
Subtotal (1 unit)**
GHS 962.70
(Exc. VAT)
GHS 1,173.53
(Inc. VAT)
Available For Back Order
Out of stock? No worries! You can back order this product.
To request a back order:
- Tap the Request Back Order button below
- Fill out the form with your Name, Email, Phone, and Company
Our team will review your request and contact you with availability and lead time.
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
Series 3 solenoid valves with G1/8 and G1/4 ports have been designed in the 3/2, 2 x 3/2, 5/2, 5/3 versions and with the following two devices of actuation: - Electropneumatically actuated with mechanical spring return - Electropneumatically actuated with external and internal air pressure supply Series 3 valves are equipped with a manual override which allows a stable operation and they can use Series U or G solenoids (22x22). Pneumatically actuated valves 3/2 NC become NO when the supply is on connection 3.
Documents
Shipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main Specs | |
|---|---|
| TYPE OF MANUAL OVERRIDE | Bistable, standard |
| NAME OF SERIES | 3 |
| ACTUATION | Pneumatic spring |
| NUMBER OF WAYS - POSITIONS | 3/2 NC |
| PORTS | G1/4 |
| General Specs for Valves and solenoid valves | |
|---|---|
| Construction | Spool - type |
| Valve group | 2x3/2 - 3/2 - 5/2 - 5/3-way CC CO CP |
| Materials | AL body, stainless steel spool, NBR seals |
| Ports | G1/8 - G1/4 |
| Installation | In any position |
| Operating temperature | 0 ÷ 60°C (with dry air at -20°C) |

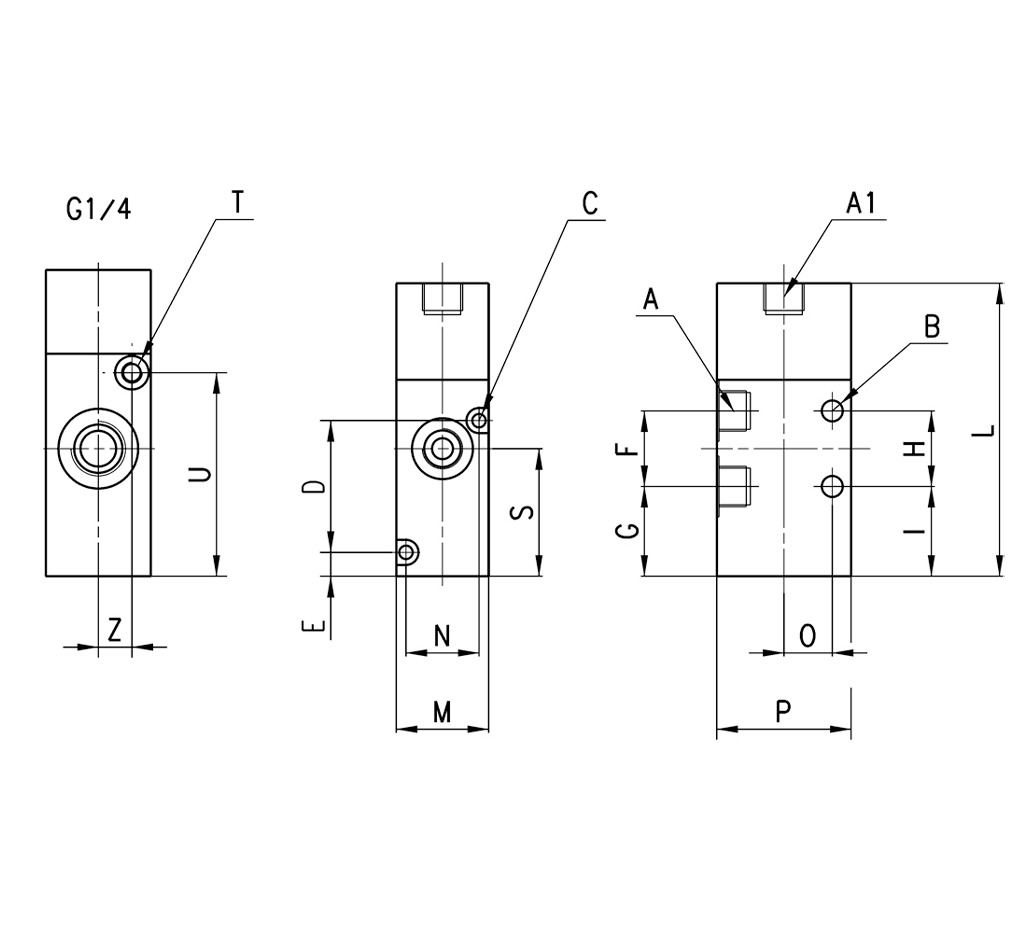

Dimensions Drawings
