front connections, 1600 A, fixed ComPact NS type N/H/NA, top mounting, 4 poles
Mfr. Part No.:
33612
APT Stock No.:
SE-33612
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 3,169.58
(Exc. VAT)
GHS 3,863.72
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
ComPacT NS is a range of circuit breakers for built-in power & energy metering
The solution covers ratings from 630 A to 3200 A
MicroLogic electronic control unit provides electrical measurement and analysis functions
ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
Flexible installation, in any position, in a switchboard or wall-mounted
Description

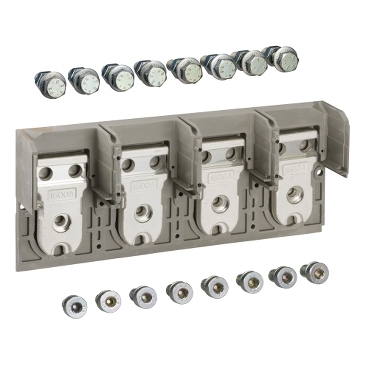

These accessories are front connections for 4 poles fixed Compact NS circuit breakers and fixed Compact NS switch disconnectors. They can be adapted to Compact NS 1600 circuit breakers with N/H breaking capacity codes. They can be adapted also to Compact NS 1600 NA switch disconnectors. These front connections terminals are designed for top mounting. They are equipped with M10 captive screws for direct connection of bars. Bare cable and cable with lugs can be adapted using some accessories. The pitch is 70mm and the terminal width is 44mm. They are sold by set of 4 parts.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | ComPacT NS630b...1600 new generation |
| Product or component type | Front connection |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPact ComPacT NS1600 new generation |
| Poles description | 4P |
| Mounting mode | Fixed |
| [In] rated current | 1600 A |
| Complementary | |
|---|---|
| Location of connection | Front |
| Localisation on device | Top |
| Connection pitch | 70 mm |
| Accessory / separate part category | Spare part for ComPact NS630b...1600 |
