MANUALLY OP. VALVE- SWITCH 3/2 BISTABLE 1/8
Mfr. Part No.:
338-990
APT Stock No.:
CMZ-338-990
Brand:
Camozzi
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 786.31
(Exc. VAT)
GHS 958.51
(Inc. VAT)
Available For Back Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
Series 3 manual valves (G1/8) and Series 4 (G1/4), 3/2-, 5/2- and 5/3-way, are available with several devices designed to satisfy different needs. Series 1 is provided with two devices: pushbutton (3/2-way) and lever (3/2 and 5/2-way). Series VMS valves are 3/2-way slide valves which are available with ports M5, G1/8, G1/4, G3/8, G1/2 and G3/4. The 3/2-way valves Series 3 and 4 are normally closed when 1 is the inlet and they can also be normally open when 3 is the inlet. Series 3 and 4 5/2-way valves can be supplied via ports 3 and 5 with two different pressures, if a cylinder has to be operated using a delivery pressure which is different from the return pressure.
Documents
Shipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
Main Specs | |
---|---|
NAME OF SERIES | 3 |
RESETTING | Switch, bistable |
PORTS | G1/8 |

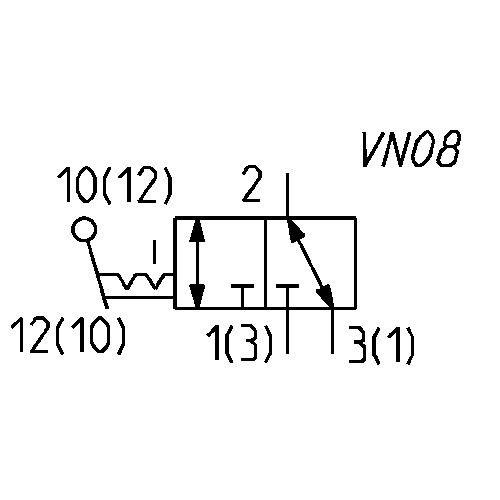

FUNCTION | 3/2-way NC |
General Specs for Manually operated valves | |
---|---|
Construction | Series 3 and 4: spool-type Series 1: poppet-type Series VMS: slide |
Function | Series 1, 3 and 4: 3/2 - 5/2 - 5/3 ways CC CO Series VMS: 3/2-way |
Materials | Aluminium body, stainless steel spool, brass poppet, NBR seals |
Ports | Series 1, 3 and 4: G1/8, G1/4 Series VMS: M5, G1/8, G1/4, G3/8, G1/2, G3/4 |
Ambient temperature | 0°C ÷ 60°C |
Medium temperature | 0°C ÷ 50°C |

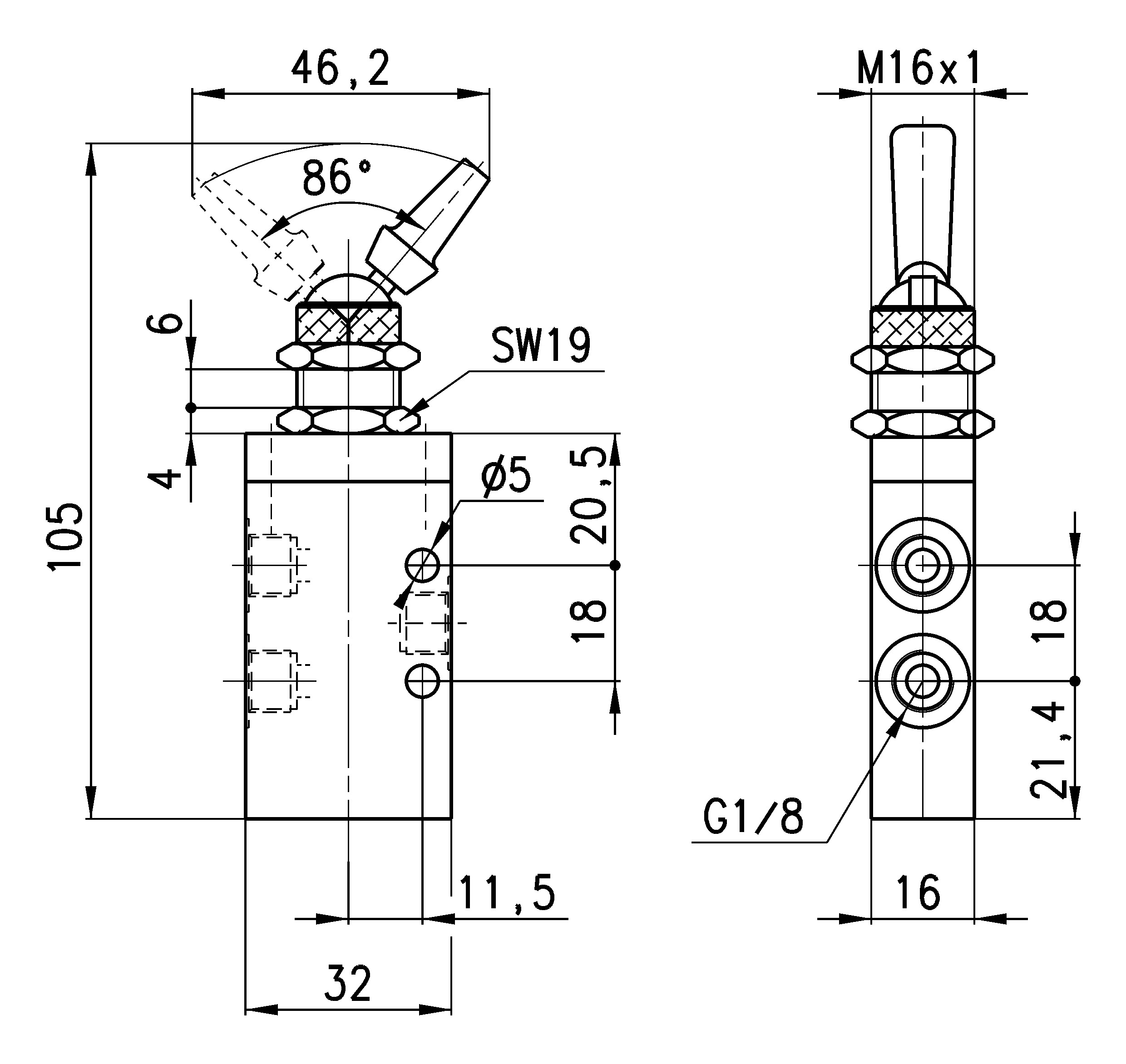

Dimensions Drawings
