SOLENOID VALVE 5/2 MONOSTABLE 1/4
Mfr. Part No.:
454-015-22
APT Stock No.:
CMZ-454-015-22
Brand:
CAMOZZI
In Stock: available
Need additional quantities?
Contact us for estimated lead timeSubtotal (1 unit)**
GHS 1,925.10
(Exc. VAT)
GHS 2,346.70
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
Series 4 solenoid valves have been designed in the 3/2, 5/2, 5/3 versions and with the following two devices of actuation: - electropneumatically actuated with mechanical spring return - electropneumatically actuated and return with external and internal air pressure supply Series 4 valves are equipped with a manual override which allows a stable operation and they are particularly suitable for mounting in arduous conditions. All these valves can be operated by solenoids Series U, G A8 and H8. Pneumatically actuated valves 3/2 NC become NO when the supply is on connection 3.
Documents
Shipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main Specs | |
|---|---|
| TYPE OF MANUAL OVERRIDE | Bistable, standard |
| NAME OF SERIES | 4 |
| ACTUATION | Single solenoid, spring return (horizontal solenoids) |
| PORTS | G1/4 |
| NUMBER OF WAYS - FUNCTION | 5/2 |
| SOLENOID INTERFACE | Mech. sol. 22 x 22 |
| General Specs for Valves and solenoid valves | |
|---|---|
| Construction | balanced spool type |
| Valve functions | 3/2 - 5/2 - 5/3-way CC, CO |
| Materials | AL body and subbases stainless steel spool technopolymer end cover NBR PU seals |
| Ports | G1/8 - G1/4 - G3/8 - G1/2 |
| Installation | In any position |
| Operating temperature | 0 ÷ 60°C (with dry air at -20°C) |

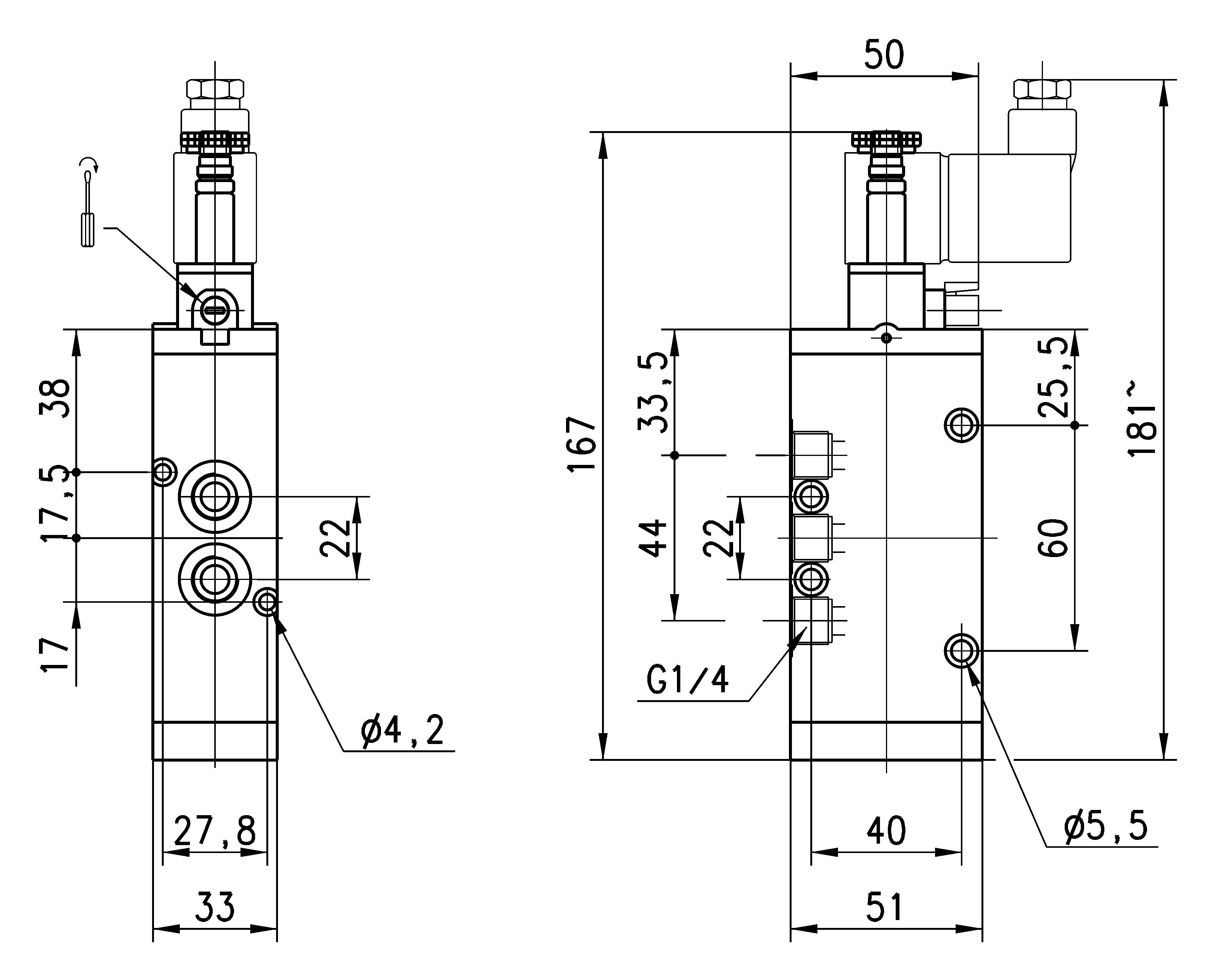

Dimensions Drawings
