MANUALLY OP. VALVE- LEVER 5/3 MONOSTABLE 1/4

Mfr. Part No.:

464-905

APT Stock No.:

CMZ-464-905

Brand:

Camozzi

Back Order

Subtotal (1 unit)**

GHS 2,164.84

(Exc. VAT)

GHS 2,638.94

(Inc. VAT)

Available For Back Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Description

Series 3 manual valves (G1/8) and Series 4 (G1/4), 3/2-, 5/2- and 5/3-way, are available with several devices designed to satisfy different needs. Series 1 is provided with two devices: pushbutton (3/2-way) and lever (3/2 and 5/2-way). Series VMS valves are 3/2-way slide valves which are available with ports M5, G1/8, G1/4, G3/8, G1/2 and G3/4. The 3/2-way valves Series 3 and 4 are normally closed when 1 is the inlet and they can also be normally open when 3 is the inlet. Series 3 and 4 5/2-way valves can be supplied via ports 3 and 5 with two different pressures, if a cylinder has to be operated using a delivery pressure which is different from the return pressure.

Specifications

Main Specs
NAME OF SERIES
4
RESETTING
Lever, monostable
PORTS
G1/4
FUNCTION
5/3-way CC
General Specs for Manually operated valves
Construction
Series 3 and 4: spool-type
Series 1: poppet-type
Series VMS: slide
Function
Series 1, 3 and 4: 3/2 - 5/2 - 5/3 ways CC CO
Series VMS: 3/2-way
Materials
Aluminium body, stainless steel spool, brass poppet, NBR seals
Ports
Series 1, 3 and 4: G1/8, G1/4
Series VMS: M5, G1/8, G1/4, G3/8, G1/2, G3/4
Ambient temperature
0°C ÷ 60°C
Medium temperature
0°C ÷ 50°C

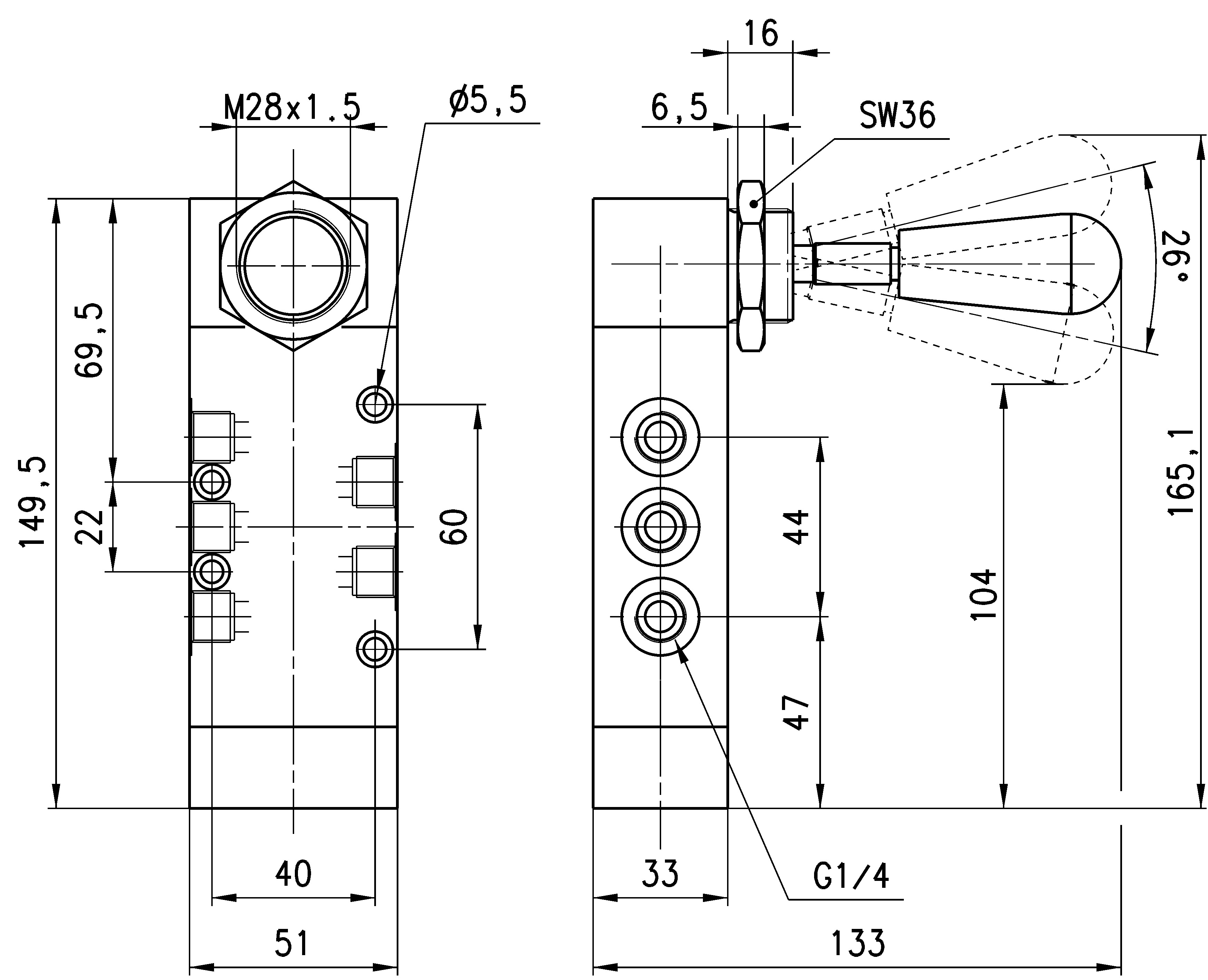

Dimensions Drawings

Dimensions
