Name: 63MP2C032A0125 - CYLINDER BORE 32 STROKE 125MM 1/8 SHAFT 12MM | CAMOZZI
Brand: CAMOZZI
SKU: CMZ-63MP2C032A0125
Price: 1932.00 GHS
Availability: InStock
Rating: 4.6 (10 reviews)

View allStandard Cylinders

CYLINDER BORE 32 STROKE 125MM 1/8 SHAFT 12MM

Mfr. Part No.:

63MP2C032A0125

APT Stock No.:

CMZ-63MP2C032A0125

Brand:

CAMOZZI

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

GHS 1,932.00

(Exc. VAT)

GHS 2,318.40

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Description

The Series 63 pneumatic cylinders have been developed to guarantee high performance and versatility. Thanks to a new system of adjustable pneumatic cushioning, the cylinders can always guarantee the best regulation whilst significantly reducing noise caused by the impact of the piston on the end block. Besides the standard version, which can be used in many sectors, specific solutions have been developed for applications such as food processing, agriculture, in tensioning, dosing systems and dancer arms for winding applications. There are also versions for demanding application environments, capable of withstanding extreme temperatures, corrosive atmospheres etc.

Documents

Product Datasheet

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Specifications

Main Specs
OPERATION	Double-acting
ROD VERSIONS	Male rod thread
NAME OF SERIES	63
STROKE	125
CONSTRUCTION	Standard with rod nut
CONSTRUCTION	Profile
VERSION	Standard, magnetic
CUSHIONING	Cushioning on both sides
BORE	32
TEMPERATURE RANGE [°C]	From 80 to -20

General Specs for Cylinders ISO 15552
Type of construction	profile (with screws) and round tube (with tie-rods)
Design	ISO 15552
Operation	single and double-acting
Type of mounting	with front / rear flange, foot mounting, with front / rear / centre / swivel trunnion
Stroking (min - max)	10 ÷ 2500 mm
Operating temperature	standard and low friction: 0°C ÷ 80°C (with dry air -20°C) high temperatures (version W): 0°C ÷ 150°C (with dry air -20°C) low temperatures (version Z): -40°C ÷ 60°C (with dry air -40°C) low temperatures (version Y): -50°C ÷ 60°C (with dry air -50°C)

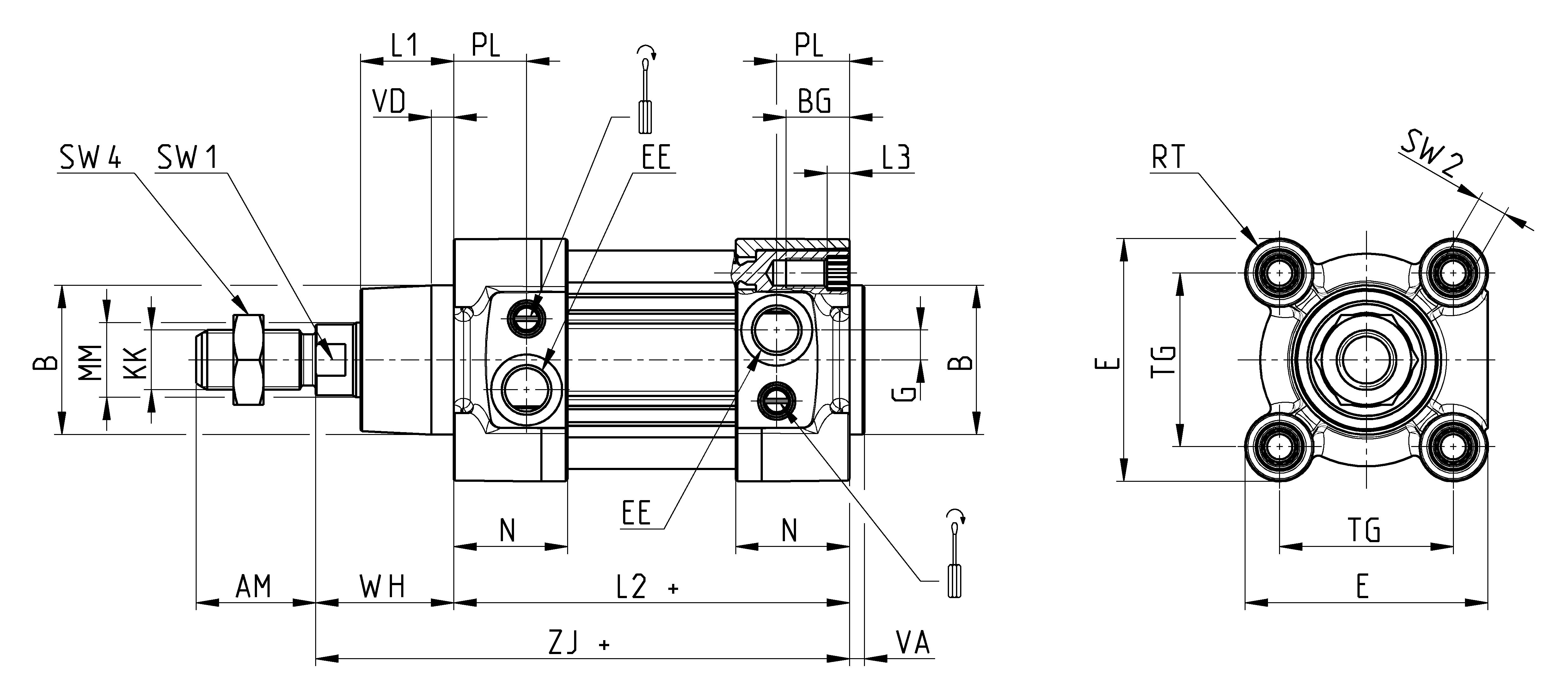

Dimensions
