SOLENOID VALVE 5/2 MONOSTABLE ISO 2

Mfr. Part No.:

952-000-P15-23

APT Stock No.:

CMZ-952-000-P15-23

Brand:

CAMOZZI

In Stock: available

Need additional quantities?

Contact us for estimated lead time

Subtotal (1 unit)**

GHS 2,534.40

(Exc. VAT)

GHS 3,089.43

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Description

Series 9 electropneumatically or pneumatically operated valves have been designed with sizes 1, 2 and 3, as recommended by the ISO Standards. The ease of pneumatic and electrical wiring makes these valves extremely flexible.

Specifications

Main Specs
NAME OF SERIES
9
SOLENOID INTERFACE AND TYPE OF MANUAL OVERRIDE
A531-BC2 standard bistable manual override
ACTUATION
Single solenoid, spring return (horizontal solenoids)
BODY DESIGN
Valve body
SIZE
Size 2
NUMBER OF WAYS - FUNCTION
5/2
General Specs for Valves and solenoid valves
Operating pressure
Max. press. 10 bar (for minimum pressures see descriptions)
Nominal pressure
6 bar
Nominal flow
ISO 1 = 900 Nl/min
ISO 2 = 1610 Nl/min
ISO 3 = 4350 Nl/min
Operating temperature
0 ÷ 60°C (with dry air at -20°C)
Fluid
Filtered air, without lubrication. If lubricated air is used, it is recommended to use ISOVG32 oil and to never interrupt the lubrication.
Electropneumatic interface
According CNOMO Standards

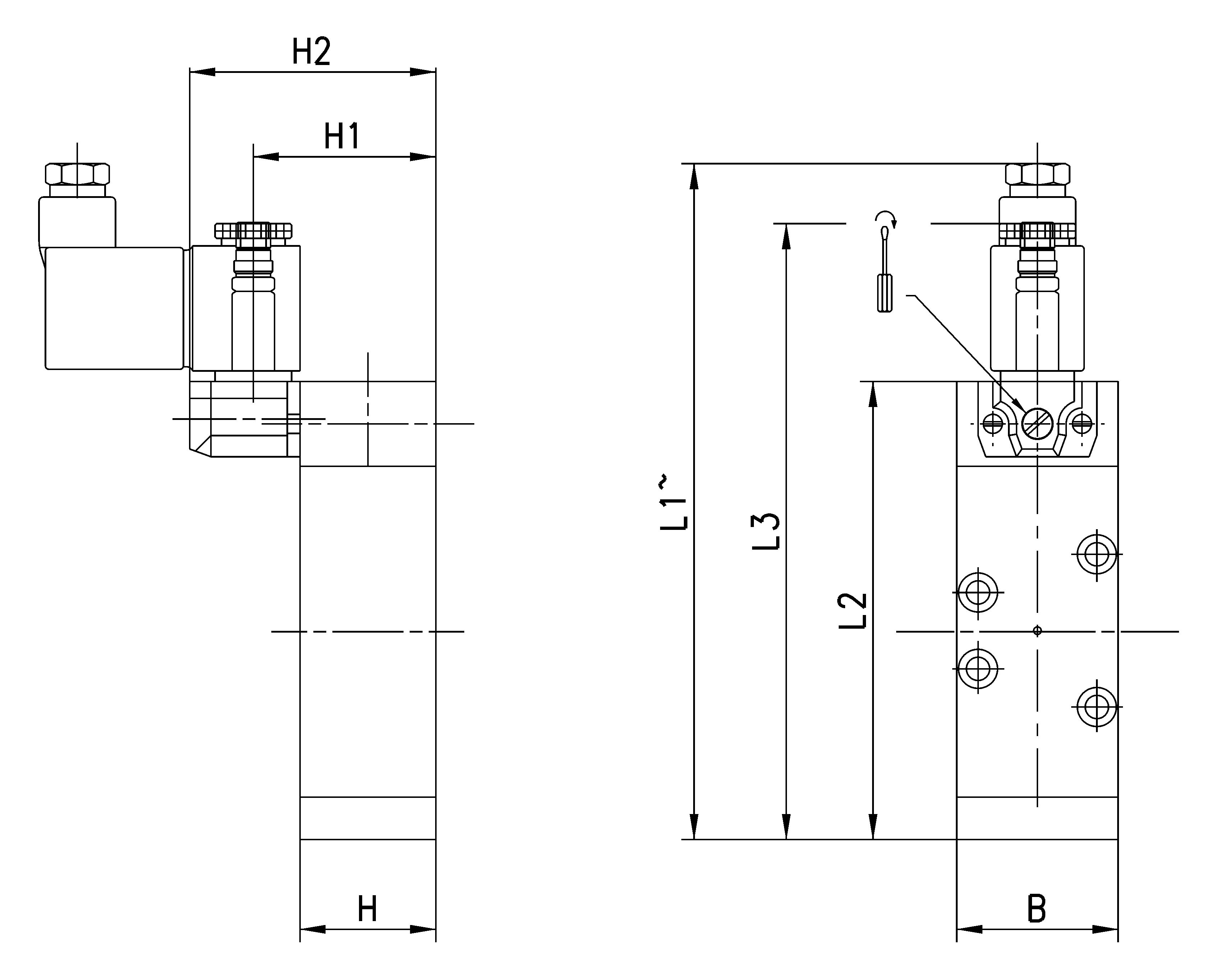

Dimensions Drawings

Dimensions
