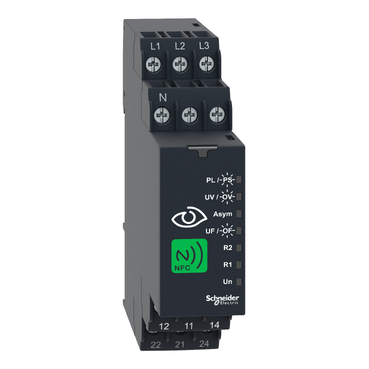

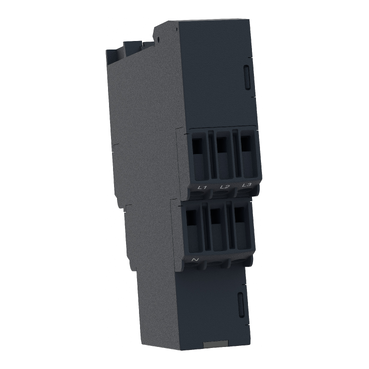

NFC multifunction phase control relay- 208..480VAC
Mfr. Part No.:
RMNF22TB30
APT Stock No.:
SE-RMNF22TB30
Brand:
SCHNEIDER ELECTRIC
In Stock: available
Need additional quantities?
Contact us for estimated lead timeSubtotal (1 unit)**
GHS 1,554.45
(Exc. VAT)
GHS 1,865.34
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Enjoy superior security as password protected
Experience unprecedented accuracy, predictive maintenance, and superior security.
Positive logic output to protect the system at power lose
Adjustable time delay to prevent nuisance tripping
Compatible with a wide range of applications, such as hoisting, packaging, lifts, textile, pumping, and water.
Description
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
Dimensions Drawings
Mounting and Clearance
Connections and Schema
L1, L2, L3, (N) : Supply to be monitored (with or without neutral)
12, 11, 14 : 1st C/O contact of output relay
22, 21, 24 : 2nd C/O contact of output relay
Technical Description
Tr : Response after crossing of threshold (< 300ms)
L1, L2, L3 : Phases of the supply voltage monitored
Alarm status:
White color: Alarm triggered
Black color: Alarm not triggered
(1) : Alarm
>U : Overvoltage threshold
H : Hysteresis
U< : Undervoltage threshold
L1, L2, L3 : Phases of the supply voltage monitored
Tt : Time delay after crossing of threshold (adjustable on app)
Alarm status:
White color : Alarm triggered
Black color : Alarm not triggered
(1) : Alarm
L1, L2, L3 : Phases of the supply voltage monitored
A : Asymmetry threshold (adjustable from 5...150V of the nominal supply voltage)
H : Hysteresis
Tt : Time delay after crossing of threshold (adjustable on app)
Alarm status:
White color : Alarm triggered
Black color : Alarm not triggered
(1) : Alarm
>F : Over frequency threshold
H : Hysteresis
F< : Under frequency threshold
L1, L2, L3 : Line frequency
Tt : Time delay after crossing of threshold (adjustable on app)
Alarm status:
White color : Alarm triggered
Black color : Alarm not triggered
(1) : Alarm
