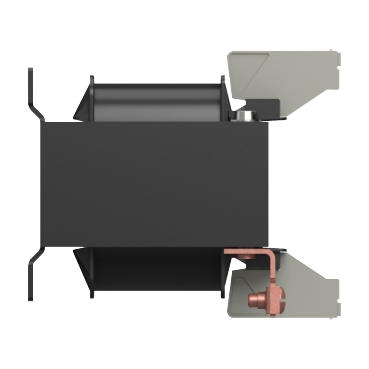

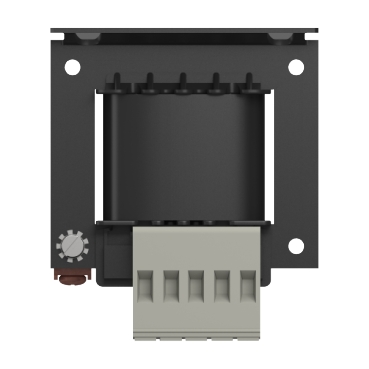

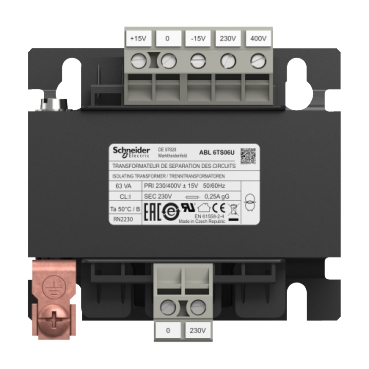

voltage transformer - 230..400 V - 1 x 230 V - 63 VA
Mfr. Part No.:
ABL6TS06U
APT Stock No.:
SE-ABL6TS06U
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 1,591.25
(Exc. VAT)
GHS 1,939.73
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 230V AC and a rated power of 63VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Modicon Transformer Optimized |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 63 VA |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 230 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20…50 °C |
| Complementary | |
|---|---|
| Input voltage limits | 360...440 V 207...253 V |
| Network frequency limits | 47…63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 84 % |
| Power dissipation in W | 12 W |
| Output sustained overvoltage | 9 % (no load, hot state) |
Dimensions Drawings
Dimensions in mm
a | b | c | G | J | Ø |
|---|---|---|---|---|---|
78 | 91 | 79 | 56 | 56 | 4.8 |
Dimensions in in.
a | b | c | G | J | Ø |
|---|---|---|---|---|---|
3.07 | 3.58 | 3.11 | 2.20 | 2.20 | 0.19 |
Connections and Schema
,
,
