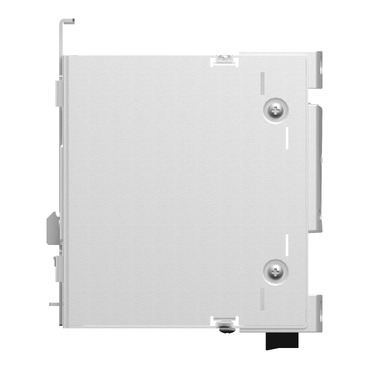

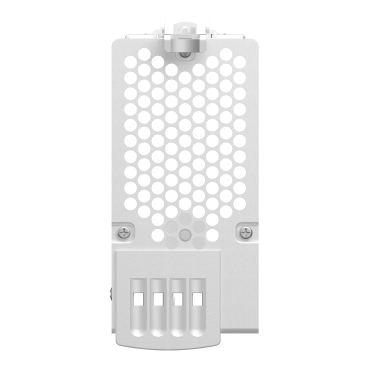

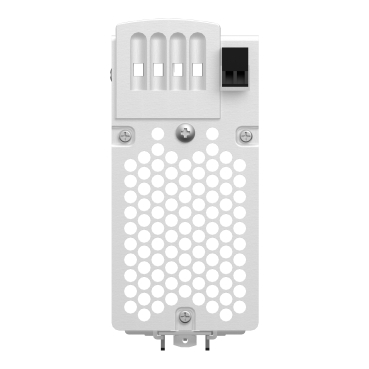

regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 5 A
Mfr. Part No.:
ABL8RPS24050
APT Stock No.:
SE-ABL8RPS24050
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 3,542.17
(Exc. VAT)
GHS 4,317.91
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Wide input range 100 to 500V
Power reserve of 150% of the nominal power
Diagnostic contact
Continuity of service thanks to ABL8 functionnal modules to be associated
Automatic reset allows short-term faults to be cleared and ease systems to restart
Description
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 56mm-wide. It weighs 0,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GB2CD08, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (1)
Functions (1)
Specifications
| Main | |
|---|---|
| Range of product | Modicon Power Supply |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase, terminal(s): N-L1 200...500 V AC phase to phase, terminal(s): L1-L2 |
| Rated power in W | 120 W |
| Output voltage | 24 V DC |
| Power supply output current | 5 A |
| Permissible temporary current boost | 1.5 x In (for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Complementary | |
|---|---|
| Input voltage limits | 85...132 V AC 170...550 V AC |
| Inrush current | 30 A |
| Power factor | 0.51 at 240 V AC 0.59 at 120 V AC |
| Efficiency | 87 % |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 15.5 W |
Dimensions Drawings
ABL 8 | a in mm | a in in. | b in mm | b in in. |
|---|---|---|---|---|
RPS24030 | 125 | 4.92 | 45 | 1.77 |
RPS24050 | 125 | 4.92 | 56 | 2.20 |
RPS24100 | 145 | 5.71 | 86 | 3.39 |
RPM24200 | 145 | 5.71 | 146 | 5.75 |
WPS24200 | 160 | 6.30 | 96 | 3.78 |
WPS24400 | 160 | 6.30 | 166 | 6.54 |
Connections and Schema
,
Single-phase (L-N) 100 to 120 V
Phase-to-phase (L1-L2) 200 to 500 V
Single-phase (L-N) 200 to 500 V
,
Series Connection
(1) Two Shottky diodes Imin = power supply In and Vmin = 50 V
Parallel Connection
Family | Series | Parallel |
|---|---|---|
ABL 8RPS/8RPM/8WPS | 2 products max. (1) | 2 products max. |
NOTE: Series or parallel connection is only recommended for products with identical references.
For better availability, the power supplies can also be connected in parallel using the ABL8RED24400 Redundancy module.
Performance Curves
The ambient temperature is a determining factor that limits the power an electronic power supply can deliver continuously. If the temperature around the electronic components is too high, their life will be significantly reduced.
The nominal ambient temperature for the Universal range of Phaseo power supplies is 50°C. Above this temperature, derating is necessary up to a maximum temperature of 60°C.
The graph below shows the power (in relation to the nominal power) that the power supply can deliver continuously, depending on the ambient temperature.
X Maximum operating temperature (°C)
ABL 8RPM, ABL 8RPS, ABL 8WPS mounted vertically
Derating should be considered in extreme operating conditions:
Intensive operation (output current permanently close to the nominal current, combined with a high ambient temperature)
Output voltage set above 24 Vdc (to compensate for line voltage drops, for example)
Parallel connection to increase the total power
,
Manual Reset Protection Mode
(1) Boost 4s
Automatic Reset Protection Mode
(1) Boost 4s
“Boost” Repeat Accuracy
This type of operation is described in detail in the user manual, which can be downloaded from the website.
