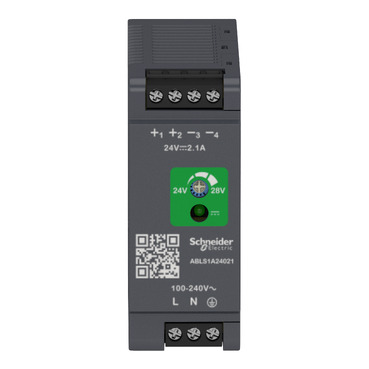

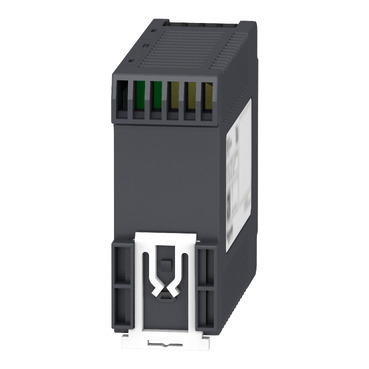

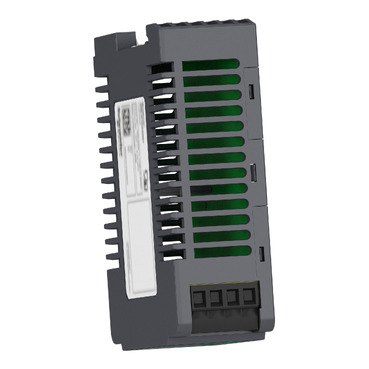

• If the unit is use in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

• For means of disconnection a switch or circuit breaker, located near the product, must be included in the installation. A marking as disconnecting device for the product is required.

• The device has an internal fuse. The unit is tested and approved with branch circuit protective device up to 20A. This circuit breaker can be used as disconnecting device.

• The power supply is only suitable for audio, video, information, communication, industrial and control equipment.

(1) : Load

(1) : Load

ABLx1Axxxxx-1 = ABLx1Axxxxx-2

max 2 x ABLx1Axxxxx

L1 = L2

∆V max 25 mV

I_Load < 90% 2 x I_nom

(1) : R_Load1

(2) : R_Load2

R_Load1= R_Load2

I₁ = I₂ = ~ I_nom

(1) : V_out1

(2) : V_out2

(3) : 2 x Diode, V_RRM> 2 x V_out1/2, I_F > 2 x I_nom1/2

(4) : V_Load = 2 x V_out

(5) : Load

(1) : Ambient

X : Surrounding Air Temperature (°C)

Y : Percentage of Maximum Load (%)

1 : Position A

2 : Position B + C

Note : Altitude ≤ 2000 m (6561 ft)
