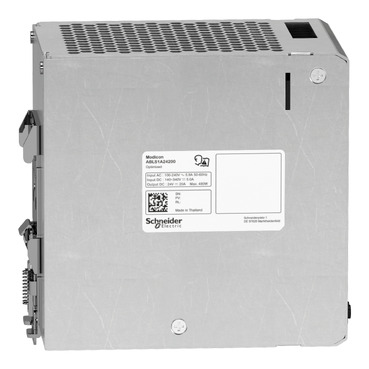

• If the unit is use in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

• For means of disconnection a switch or circuit breaker, located near the product, must be included in the installation. A marking as disconnecting device for the product is required.

• The device has an internal fuse. The unit is tested and approved with branch circuit protective device up to 20A. This circuit breaker can be used as disconnecting device.

• The power supply is only suitable for audio, video, information, communication, industrial and control equipment.

(1) : Output wiring

(2) : Input wiring

This is only the terminal wire rating. The wire size to be used in the application must be selected by the machine builder according to the ambient temperature, the wiring method and the end-use product standard. The unit has been tested and approved with input wire (80°C) and output wire 1 x 12AWG (95°C) or 3 x 18 AWG copper wire.

(1) : Load

(1) : Load

ABLx1Axxxxx-1 = ABLx1Axxxxx-2

max 2 x ABLx1Axxxxx

L1 = L2

∆V max 25 mV

I_Load < 90% 2 x I_nom

(1) : R_Load1

(2) : R_Load2

R_Load1= R_Load2

I₁ = I₂ = ~ I_nom

(1) : V_out1

(2) : V_out2

(3) : 2 x Diode, V_RRM> 2 x V_out1/2, I_F > 2 x I_nom1/2

(4) : V_Load = 2 x V_out

(5) : Load

X : Surrounding Air Temperature (°C)

Y : Percentage of Maximum Load (%)

1 : Altitude ≤ 2000 m (6561 ft), Input voltage = 230 VAC / 325 VDC

2 : Altitude ≤ 2000 m (6561 ft), 115 VAC / 162 VDC

3 : Altitude ≤ 5000 m (16404 ft), Input voltage = 230 VAC / 325 VDC

4 : Altitude ≤ 5000 m (16404 ft), 115 VAC / 162 VDC

X : Surrounding Air Temperature (°C)

Y : Percentage of Maximum Load (%)

1 : 110 VDC

2 : 90 VDC

3 : 85 VDC
