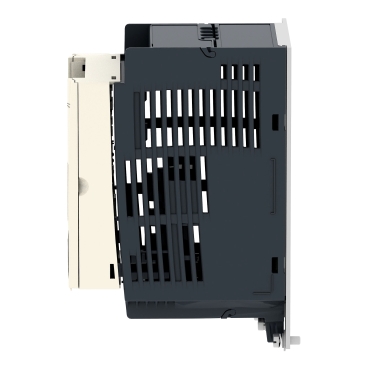

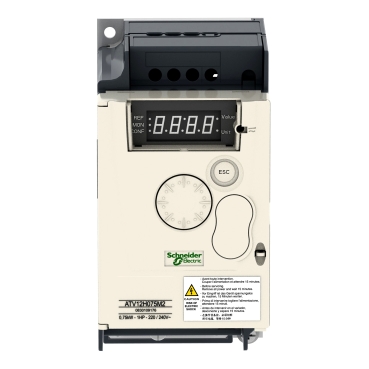

variable speed drive ATV12 - 0.75kW - 1hp - 200..240V - 1ph - with heat sink

Mfr. Part No.:

ATV12H075M2

APT Stock No.:

SE-ATV12H075M2

Brand:

SCHNEIDER ELECTRIC

In Stock: available

Need additional quantities?

Contact us for estimated lead time

Subtotal (1 unit)**

GHS 3,314.25

(Exc. VAT)

GHS 4,040.07

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Plug and play solution.

Electrical cabinet friendly design.

For simple industrial machines.

Energy saving.

Less downtime.

Description

Specifications

Dimensions Drawings

Dimensions
Drive without EMC Conformity Kit


Dimensions in mm

b

c

H

130

131.2

120

Dimensions in in.

b

c

H

5.12

5.16

4.72

Drive with EMC Conformity Kit


Dimensions in mm

c1

63

Dimensions in in.

c1

2.48


Mounting and Clearance

Mounting Recommendations
Clearance for Vertical Mounting


Mounting Type A


Mounting Type B


Remove the protective cover from the top of the drive.

Mounting Type C


Remove the protective cover from the top of the drive.


Connections and Schema

Single-Phase Power Supply Wiring Diagram


A1
Drive
KM1
Contactor (only if a control circuit is needed)
P1
2.2 kΩ reference potentiometer. This can be replaced by a 10 kΩ potentiometer (maximum).
Q1
Circuit breaker
(1)
Negative logic (Sink)
(2)
Positive logic (Source) (factory set configuration)
(3)
0...10 V or 0...20 mA


,
Recommended Schemes
2-Wire Control for Logic I/O with Internal Power Supply


LI1 :
Forward
LI• :
Reverse
A1 :
Drive

3-Wire Control for Logic I/O with Internal Power Supply


LI1 :
Stop
LI2 :
Forward
LI• :
Reverse
A1 :
Drive

Analog Input Configured for Voltage with Internal Power Supply


(1)
2.2 kΩ…10 kΩ reference potentiometer
A1 :
Drive

Analog Input Configured for Current with Internal Power Supply


(2)
0-20 mA 4-20 mA supply
A1 :
Drive

Connected as Positive Logic (Source) with External 24 vdc Supply


(1)
24 vdc supply
A1 :
Drive

Connected as Negative Logic (Sink) with External 24 vdc supply


(1)
24 vdc supply
A1 :
Drive


Performance Curves

Torque Curves


1 :
Self-cooled motor: continuous useful torque (1)
2 :
Force-cooled motor: continuous useful torque
3 :
Transient overtorque for 60 s
4 :
Transient overtorque for 2 s
5 :
Torque in overspeed at constant power (2)
(1)
For power ratings ≤ 250 W, derating is 20% instead of 50% at very low frequencies.
(2)
The nominal motor frequency and the maximum output frequency can be adjusted from 0.5 to 400 Hz. The mechanical overspeed capability of the selected motor must be checked with the manufacturer.
