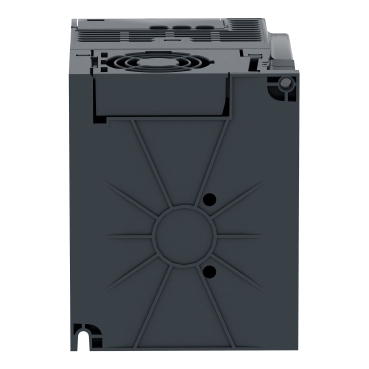

variable speed drive ATV12 - 2.2kW - 3hp - 200..240V - 1ph - with heat sink

Mfr. Part No.:

ATV12HU22M2

APT Stock No.:

SE-ATV12HU22M2

Brand:

Schneider Electric

Back Order

Need more stock?

Contact us for Est. Lead Time

Subtotal (1 unit)**

GHS 5,140.07

(Exc. VAT)

GHS 6,265.75

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Plug and play solution.

Electrical cabinet friendly design.

For simple industrial machines.

Energy saving.

Less downtime.

Description

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

Specifications

Main
Range of product
Altivar 12
Product or component type
Variable speed drive
Product specific application
Simple machine
Mounting mode
Cabinet mount
Communication port protocol
Modbus
Supply frequency
50/60 Hz +/- 5 %
[Us] rated supply voltage
200...240 V - 15...10 %
Nominal output current
10 A
Motor power kW
2.2 kW
Motor power hp
3 hp
EMC filter
Integrated
IP degree of protection
IP20
Motor power hp
3 hp
Complementary
Discrete input number
4
Discrete output number
2
Analogue input number
1
Analogue output number
1
Relay output number
1
Physical interface
2-wire RS 485

Dimensions Drawings

Dimensions
Drive without EMC Conformity Kit


Dimensions in mm

b

c

142

156.2

Dimensions in in.

b

c

5.59

6.15

Drive with EMC Conformity Kit


Dimensions in mm

b1

188.2

Dimensions in in.

b1

7.41


Mounting and Clearance

Mounting Recommendations
Clearance for Vertical Mounting


Mounting Type A


Mounting Type B


Remove the protective cover from the top of the drive.

Mounting Type C


Remove the protective cover from the top of the drive.


Connections and Schema

Single-Phase Power Supply Wiring Diagram


A1
Drive
KM1
Contactor (only if a control circuit is needed)
P1
2.2 kΩ reference potentiometer. This can be replaced by a 10 kΩ potentiometer (maximum).
Q1
Circuit breaker
(1)
Negative logic (Sink)
(2)
Positive logic (Source) (factory set configuration)
(3)
0...10 V or 0...20 mA


,
Recommended Schemes
2-Wire Control for Logic I/O with Internal Power Supply


LI1 :
Forward
LI• :
Reverse
A1 :
Drive

3-Wire Control for Logic I/O with Internal Power Supply


LI1 :
Stop
LI2 :
Forward
LI• :
Reverse
A1 :
Drive

Analog Input Configured for Voltage with Internal Power Supply


(1)
2.2 kΩ…10 kΩ reference potentiometer
A1 :
Drive

Analog Input Configured for Current with Internal Power Supply


(2)
0-20 mA 4-20 mA supply
A1 :
Drive

Connected as Positive Logic (Source) with External 24 vdc Supply


(1)
24 vdc supply
A1 :
Drive

Connected as Negative Logic (Sink) with External 24 vdc supply


(1)
24 vdc supply
A1 :
Drive


Performance Curves

Torque Curves


1 :
Self-cooled motor: continuous useful torque (1)
2 :
Force-cooled motor: continuous useful torque
3 :
Transient overtorque for 60 s
4 :
Transient overtorque for 2 s
5 :
Torque in overspeed at constant power (2)
(1)
For power ratings ≤ 250 W, derating is 20% instead of 50% at very low frequencies.
(2)
The nominal motor frequency and the maximum output frequency can be adjusted from 0.5 to 400 Hz. The mechanical overspeed capability of the selected motor must be checked with the manufacturer.
