variable speed drive ATV310. 15 kW. 20 hp. 380...460 V. 3 phase. without filter
Mfr. Part No.:
ATV310HD15N4E
APT Stock No.:
SE-ATV310HD15N4E
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeShipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Meet the requirements of directives regarding the protection of the environment (RoHS, WEEE)
Designed with an increased adaptability to motors and tough loads
Easy to integrate in system
Easy to install
Easy to commission
Description
This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to HD 15kW/20HP or ND 18.5KW/25HP, and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It weighs 6.3kg and its dimensions are, 180mm wide, 330mm high, 191mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (3)
Specifications
| Main | |
|---|---|
| Range of product | Easy Altivar 310 |
| Product or component type | Variable speed drive |
| Product specific application | Simple machine |
| Assembly style | With heat sink |
| Device short name | ATV310 |
| Network number of phases | Three phase |
| [Us] rated supply voltage | 380...460 V - 15...10 % |
| Motor power kW | 15 kW for heavy duty 18.5 kW for normal duty |
| Motor power hp | 20 hp for heavy duty 25 hp for normal duty |
| Noise level | 50 dB |
| Complementary | |
|---|---|
| Quantity per set | Set of 1 |
| EMC filter | Without EMC filter |
| type of cooling | Integrated fan |
| Communication port protocol | Modbus |
| Connector type | RJ45 (on front face) for Modbus |
| Physical interface | 2-wire RS 485 for Modbus |

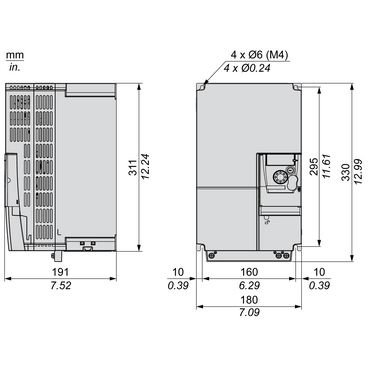

Dimensions Drawings
Mounting and Clearance
Mounting Type A
Mounting Type B
Remove the protective cover from the top of the drive.
Connections and Schema
A1 : Drive
KM1 : Contactor (only if a control circuit is needed)
P1 : 2.2 kΩ reference potentiometer. This can be replaced by a 10 kΩ potentiometer (maximum).
Q1 : Circuit breaker
R : Braking resistor (optional)
(1) Negative logic (Sink)
(2) Positive logic (Source) (factory set configuration)
(3) 0...10 V or 0...20 mA
(4) Line choke three-phase (optional)
