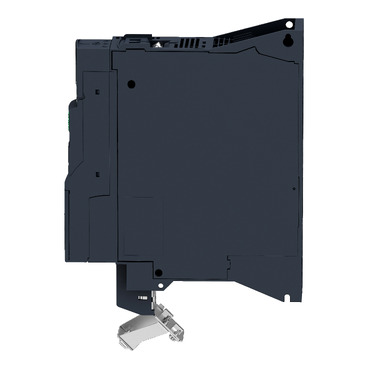

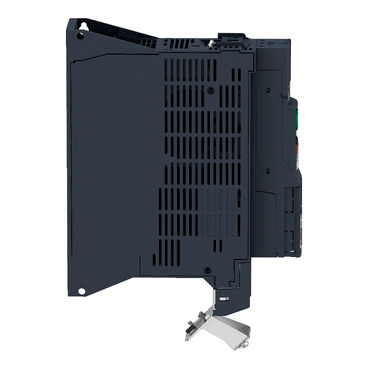

variable speed drive, ATV320, 3 kW, 380…500 V, 3 phases, book

Mfr. Part No.:

ATV320U30N4B

APT Stock No.:

SE-ATV320U30N4B

Brand:

SCHNEIDER ELECTRIC

Motor power kW:

In Stock: available

Need additional quantities?

Contact us for estimated lead time

Subtotal (1 unit)**

GHS 13,027.35

(Exc. VAT)

GHS 15,880.34

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Save time and space

Less downtime and maintenance costs

Optimized for ventilation and pumping applications: up to 30% energy savings

Advanced connectivity reduce your initial investment while keeping flexibility in design

Control of asynchronous and synchronous motors, including IE2, IE3 and PM motors

Description

Compatible products

Specifications

Dimensions Drawings

Dimensions
Bottom, Right and Front View


Mounting and Clearance

Mounting and Clearance


(1) Minimum value corresponding to thermal constraints.

(2) Optional GV2 circuit-breaker


,
Option: Protection Device, GV2 circuit-breaker

NOTE: The product overall height dimension, including GV2 adapter and EMC plate mounted, becomes 424 mm (16.7 in.) instead of 325 mm (12.80 in.)


(1) Ground screw (HS type 2 - 5x12)


Connections and Schema

Connection Diagrams
Diagram with Line Contactor

Connection diagrams conforming to standards ISO13849 category 1 and IEC/EN 61508 capacity SIL1, stopping category 0 in accordance with standard IEC/EN 60204-1.


(1) Line choke (if used)

(2) Fault relay contacts, for remote signaling of drive status

Diagram with Switch Disconnect

Connection diagrams conforming to standards EN 954-1 category 1 and IEC/EN 61508 capacity SIL1, stopping category 0 in accordance with standard IEC/EN 60204-1.


(1) Line choke (if used)

(2) Fault relay contacts, for remote signaling of drive status


,
Control Connection Diagram in Source Mode


(1) Analog output

(2) Analog inputs

(3) Reference potentiometer (10 kOhm maxi)

(4) Digital inputs


,
Digital Inputs Wiring

The logic input switch (SW1) is used to adapt the operation of the logic inputs to the technology of the programmable controller outputs.

Switch SW1 set to "Source" position and use of the output power supply for the DIs.


Switch SW1 set to "Source" position and use of an external power supply for the DIs.


Switch SW1 set to "Sink Int" position and use of the output power supply for the DIs.


Switch SW1 set to "Sink Ext" position and use of an external power supply for the DIs.



Performance Curves

Derating Curves

Derating curve for the nominal drive current (In) as a function of temperature and switching frequency (SF).


40 °C (104 °F) - Mounting type A, B and C

50 °C (122 °F) - Mounting type A, B and C

60 °C (140 °F) - Mounting type B and C

In : Nominal Drive Current

SF : Switching Frequency
