isolated analog input module X80 - 8 inputs - high speed
Mfr. Part No.:
BMXAMI0810
APT Stock No.:
SE-BMXAMI0810
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 7,709.82
(Exc. VAT)
GHS 9,398.27
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Modularity and scalability
Robustness and reliability
Common safety
IP20 protection for harshest environments
Wide range of operating temperature from 0°C to 60°C
Description

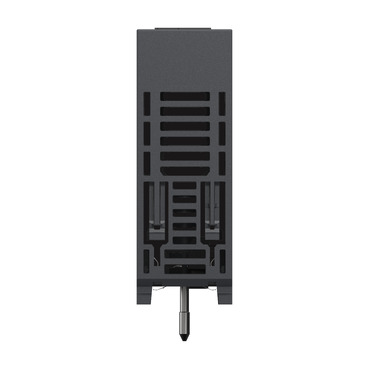

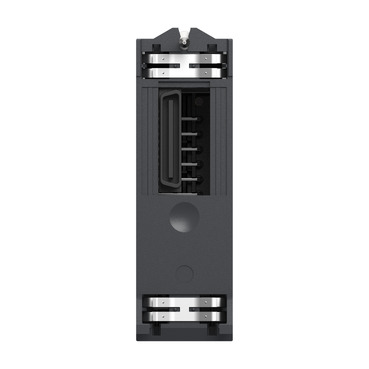

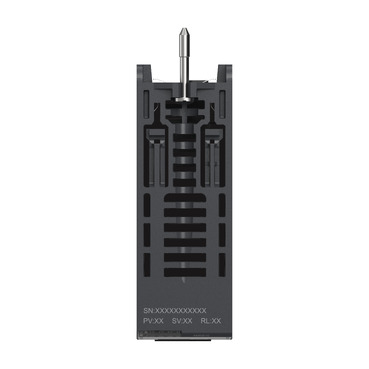

This high level analog input module is part of the Modicon X80 modules. It has 8 isolated analog inputs (15 bits + sign). This module is connected via 28-way removable terminal block. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (1)
Specifications
| Main | |
|---|---|
| Range of product | Modicon X80 |
| Product or component type | Analog input module |
| Electrical connection | 28 ways 1 connector |
| Isolation between channels | Isolated |
| Input level | High level |
| Analogue input number | 8 |
| Analogue input type | Current +/- 20 mA Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V |
| Complementary | |
|---|---|
| Analog/digital conversion | 16 bits |
| Analogue input resolution | 15 bits + sign |
| Permitted overload on inputs | +/- 30 mA 0...20 mA +/- 30 mA 4...20 mA +/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0...10 V +/- 30 V 0...5 V +/- 30 V 1...5 V +/- 30 mA +/- 20 mA |
| Input impedance | 10 MOhm in voltage mode 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Type of filter | First order digital filtering |
Dimensions Drawings
(1) With removable terminal block (cage, screw or spring).
(2) With FCN connector.
(3) On AM1 ED rail: 35 mm wide, 15 mm deep. Only possible with BMXXBP0400/0400H/0600/0600H/0800/0800H rack.
Rack references | a in mm | a in in. |
|---|---|---|
BMXXBP0400 and BMXXBP0400H | 242.4 | 09.54 |
BMXXBP0600 and BMXXBP0600H | 307.6 | 12.11 |
BMXXBP0800 and BMXXBP0800H | 372.8 | 14.68 |
BMXXBP1200 and BMXXBP1200H | 503.2 | 19.81 |
Connections and Schema
VIx + pole input for channel x.
COMx - pole input for channel x, COMx are connected together internally.
IIx current reading resistor + input.
Channel 0 voltage sensor.
Channel 1 2-wire current sensor.
