discrete output module X80 - 16 outputs - relay - 24 V DC or 24...240 V AC
Mfr. Part No.:
BMXDRA1605
APT Stock No.:
SE-BMXDRA1605
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 5,791.77
(Exc. VAT)
GHS 7,060.17
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Cost-effective modernization and migration
Reduce time to market
Process efficiency
Easy Maintenance
Reliability and robustness
Description

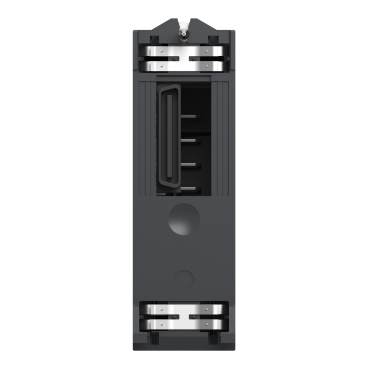

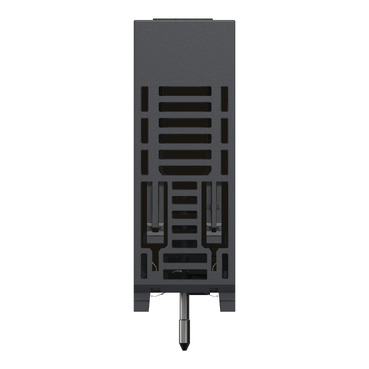

This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
ACCESSORIES (2)
Specifications
| Main | |
|---|---|
| Range of product | Modicon X80 |
| Product or component type | Discrete output module |
| Discrete output number | 16 conforming to EN/IEC 61131-2 |
| Discrete output type | Relay |
| Discrete output voltage | 24...48 V 19...60 V DC 24...240 V 19…264 V AC |
| Complementary | |
|---|---|
| [Ith] conventional free air thermal current | 2 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3 W |
| Response time on output | < 8 ms activation < 10 ms deactivation |
| Typical current consumption | 100 mA at 3.3 V DC 95 mA at 24 V DC |
| MTBF reliability | 2100000 H |
Dimensions Drawings
(1) With removable terminal block (cage, screw or spring).
(2) With FCN connector.
(3) On AM1 ED rail: 35 mm wide, 15 mm deep. Only possible with BMXXBP0400/0400H/0600/0600H/0800/0800H rack.
Rack references | a in mm | a in in. |
|---|---|---|
BMXXBP0400 and BMXXBP0400H | 242.4 | 09.54 |
BMXXBP0600 and BMXXBP0600H | 307.6 | 12.11 |
BMXXBP0800 and BMXXBP0800H | 372.8 | 14.68 |
BMXXBP1200 and BMXXBP1200H | 503.2 | 19.81 |
Connections and Schema
(1) Module
(2) Output
(3) Command
(4) Pre-actuator
(5) Power supply
(1) Pre-actuator
(2) Power supply : 24...48 VDC or 24...240 VAC
(3) Fuse : 1 fast blow fuse of 12 A for each 8-channel group
(4) We recommend installing this type of protection on the terminals of each pre-actuator
