Name: BMXNOE0110H - M340 Ethernet TCP/IP FactoryCast module | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-BMXNOE0110H
Availability: InStock
Rating: 4.3 (25 reviews)

View allModicon M340

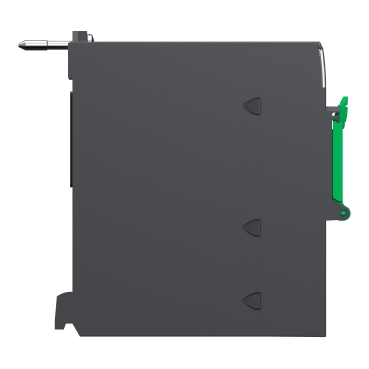

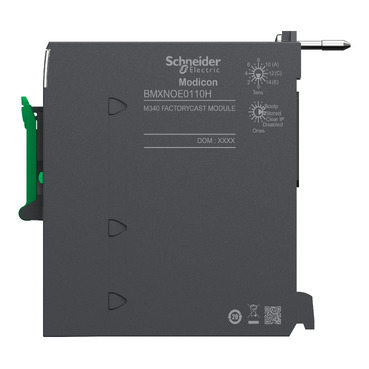

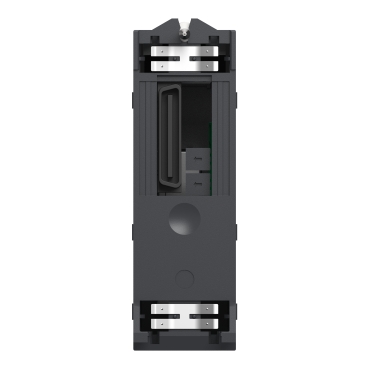

M340 Ethernet TCP/IP FactoryCast module

Mfr. Part No.:

BMXNOE0110H

APT Stock No.:

SE-BMXNOE0110H

Brand:

SCHNEIDER ELECTRIC

Currently Unavailable – Back Order Required

Available For Back Order

Out of stock? No worries! You can back order this product.
To request a back order:

Tap the Request Back Order button below
Fill out the form with your Name, Email, Phone, and Company

Our team will review your request and contact you with availability and lead time.

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Comfortable memory

Small box flexibility and integrated functions

Transparent ready concept

Internal power supply via rack

RESET pushbutton cold restart control

Description

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Specifications

Main
Range of product	Modicon M340 automation platform
Product or component type	Ethernet TCP/IP network module
Product specific application	For severe environments
Concept	Transparent Ready
Integrated connection type	Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
Protective treatment	Conformal coating

Complementary
Communication service	Bandwidth management FDR server Rack Viewer SNMP network administrator Global Data I/O scanning Modbus TCP messaging Web server configurable Data Editor (via PC, pocket PC or PDA terminal) SOAP XML Web service (server)
Port Ethernet	10BASE-T/100BASE-TX
Memory description	Supplied Flash memory card (BMXRWSC016M) Internal RAM 16000 kB
Memory usage	User web page size: internal RAM Activating the standard web server: supplied Flash memory card (BMXRWSC016M) Application saving: supplied Flash memory card (BMXRWSC016M)
Supply	Internal power supply via rack
Marking	CE

Dimensions Drawings

Modules Mounted on Racks

Dimensions

(1)

With removable terminal block (cage, screw or spring).

(2)

With FCN connector.

(3)

On AM1 ED rail: 35 mm wide, 15 mm deep. Only possible with BMXXBP0400/0400H/0600/0600H/0800/0800H rack.

Rack references	a in mm	a in in.
BMXXBP0400 and BMXXBP0400H	242.4	09.54
BMXXBP0600 and BMXXBP0600H	307.6	12.11
BMXXBP0800 and BMXXBP0800H	372.8	14.68
BMXXBP1200 and BMXXBP1200H	503.2	19.81
