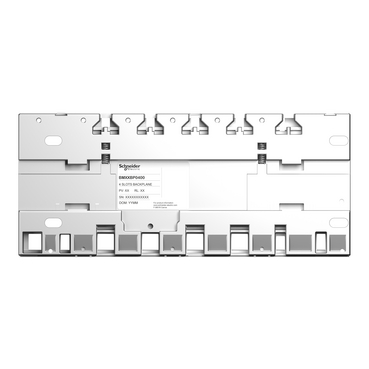

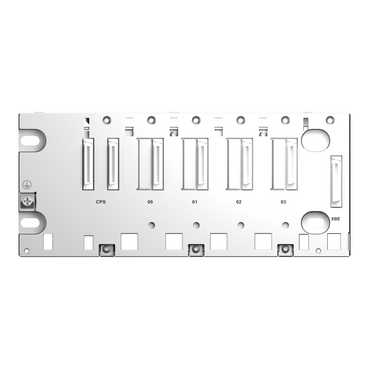

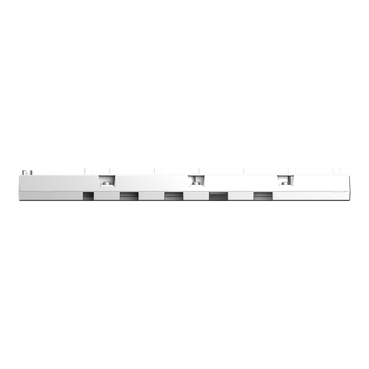

rack M340 - 4 slots - panel, plate or DIN rail mounting
Mfr. Part No.:
BMXXBP0400
APT Stock No.:
SE-BMXXBP0400
Brand:
Schneider Electric
In Stock: 1 available
Need additional quantities?
Contact us for estimated lead timeShipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Same backplane used by Modicon M340, Modicon M580, and X80 modules
Stable in-rack module mounting way
Hot swapable feature for most I/O modules
Easy Quantum modernization
Description
This 4 slots X-bus rack is part of the Modicon X80 modules. Number of slots comprises processor, I/O, communication and application-specific modules (excluding power supply module). It can be mounted on DIN rail and its weight is 0.630kg.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Cables (2)
Options (2)
Specifications
| Main | |
|---|---|
| Range of product | Modicon X80 |
| Product or component type | Backplane |
| Complementary | |
|---|---|
| Number of slots | 4 bus X |
| Product compatibility | BMXP34 processor BMXCPS power supply I/O module Specific application module |
| Power consumption in W | 1.12 W |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws, mounting on panel By 4 M4/M5/M6 screws, mounting on mounting plate By clips, mounting on 35 mm symmetrical DIN rail |
| Height | 103.7 mm |
Dimensions Drawings
Mounting and Clearance
Minimum Clearance of a typical installation in a cabinet with ducts
a Side clearance: > 40 mm (1.57 in.)
b Top and bottom clearance with surrounding objects: > 20 mm (0.79 in.)
1 Installation or casing
2 Wiring duct or tray
,
Symmetric DIN rail | Double-profile DIN rail | |
Type A | Type B | |
|
|
|
NOTE: When mounted on a type B symmetric DIN rail, the rack withstands less mechanical stress.
,
Rack Type | a | b | |
X Bus racks | BMXXBP0400 BMXXBP0400H | 202.1 mm (7.957 in) | 214.8 mm (8.457 in) |
BMXXBP0600 BMXXBP0600H | 267.5 mm (10.531 in) | 280 mm (11.023 in) | |
BMXXBP0800 BMXXBP0800H | 332.5 mm (13.091 in) | 345.2 mm (13.591 in) | |
BMXXBP1200 BMXXBP1200H | 462.9 mm (18.224 in) | 475.6 mm (18.724 in) |
,
1 Telequick plate
2 Clip-on nuts
NOTE: The two right side screws are accessible until there is no rack extender module installed
