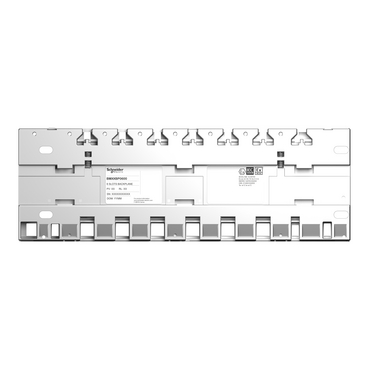

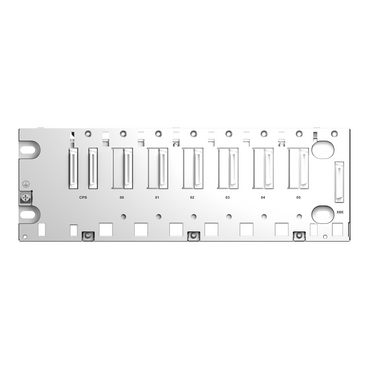

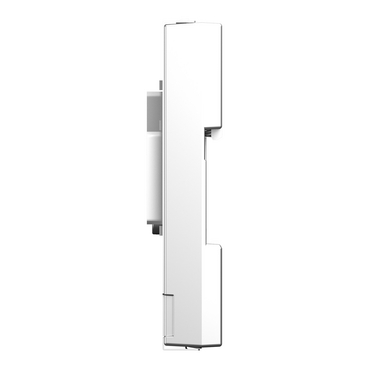

rack M340 - 6 slots - panel, plate or DIN rail mounting
Mfr. Part No.:
BMXXBP0600
APT Stock No.:
SE-BMXXBP0600
Brand:
Schneider Electric
In Stock: 1 available
Need additional quantities?
Contact us for estimated lead timeShipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Same backplane used by Modicon M340, Modicon M580, and X80 modules
Stable in-rack module mounting way
Hot swapable feature for most I/O modules
Easy Quantum modernization
Description
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 6 bus X slots. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a power of 1.5W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 0.79kg. It is suitable for medium to large process applications. This Ethernet backplane rack is compatible with BMXP34 processor, I/O module, specific application module and BMXCPS power supply. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Cables (2)
Options (2)
Specifications
| Main | |
|---|---|
| Range of product | Modicon X80 |
| Product or component type | Backplane |
| Complementary | |
|---|---|
| Number of slots | 6 bus X |
| Product compatibility | BMXP34 processor BMXCPS power supply I/O module Specific application module |
| Power consumption in W | 1.68 W |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws, mounting on panel By 4 M4/M5/M6 screws, mounting on mounting plate By clips, mounting on 35 mm symmetrical DIN rail |
| Height | 103.7 mm |
Dimensions Drawings
Mounting and Clearance
Minimum Clearance of a typical installation in a cabinet with ducts
a Side clearance: > 40 mm (1.57 in.)
b Top and bottom clearance with surrounding objects: > 20 mm (0.79 in.)
1 Installation or casing
2 Wiring duct or tray
,
Symmetric DIN rail | Double-profile DIN rail | |
Type A | Type B | |
|
|
|
NOTE: When mounted on a type B symmetric DIN rail, the rack withstands less mechanical stress.
,
Rack Type | a | b | |
X Bus racks | BMXXBP0400 BMXXBP0400H | 202.1 mm (7.957 in) | 214.8 mm (8.457 in) |
BMXXBP0600 BMXXBP0600H | 267.5 mm (10.531 in) | 280 mm (11.023 in) | |
BMXXBP0800 BMXXBP0800H | 332.5 mm (13.091 in) | 345.2 mm (13.591 in) | |
BMXXBP1200 BMXXBP1200H | 462.9 mm (18.224 in) | 475.6 mm (18.724 in) |
,
1 Telequick plate
2 Clip-on nuts
NOTE: The two right side screws are accessible until there is no rack extender module installed
