Rack X80- 12 slots- Backplane M340 & M580
Mfr. Part No.:
BMXXBP1200
APT Stock No.:
SE-BMXXBP1200
Brand:
SCHNEIDER ELECTRIC
In Stock: available
Need additional quantities?
Contact us for estimated lead timeSubtotal (1 unit)**
GHS 6,790.35
(Exc. VAT)
GHS 8,148.42
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Same backplane used by Modicon M340, Modicon M580, and X80 modules
Stable in-rack module mounting way
Hot swapable feature for most I/O modules
Easy Quantum modernization
Description

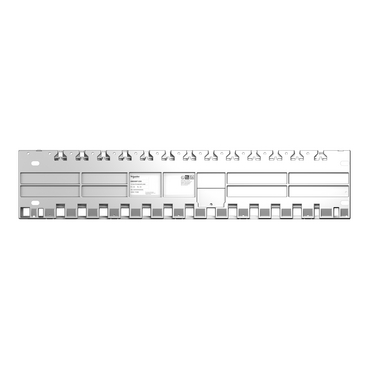

This 12 slots X-bus rack is part of the Modicon X80 modules. Number of slots comprises processor, I/O, communication and application-specific modules (excluding power supply module). It can be mounted on DIN rail and its weight is 1.270kg.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Specifications
Dimensions Drawings
Mounting and Clearance
Minimum Clearance of a typical installation in a cabinet with ducts
a Side clearance: > 40 mm (1.57 in.)
b Top and bottom clearance with surrounding objects: > 20 mm (0.79 in.)
1 Installation or casing
2 Wiring duct or tray
,
Rack Type | a | b | |
X Bus racks | BMXXBP0400 BMXXBP0400H | 202.1 mm (7.957 in) | 214.8 mm (8.457 in) |
BMXXBP0600 BMXXBP0600H | 267.5 mm (10.531 in) | 280 mm (11.023 in) | |
BMXXBP0800 BMXXBP0800H | 332.5 mm (13.091 in) | 345.2 mm (13.591 in) | |
BMXXBP1200 BMXXBP1200H | 462.9 mm (18.224 in) | 475.6 mm (18.724 in) |
,
1 Telequick plate
2 Clip-on nuts
NOTE: The two right side screws are accessible until there is no rack extender module installed
