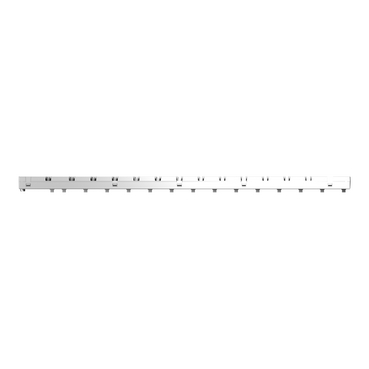

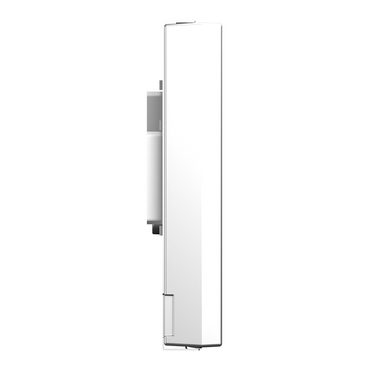

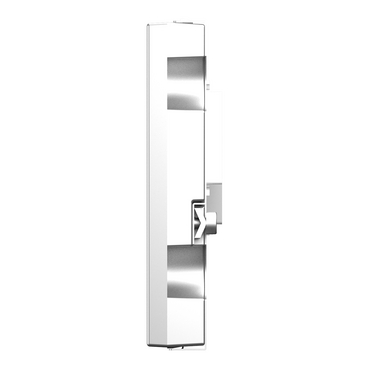

Ruggedized rack M340-12slots- panel/plate mounting

Mfr. Part No.:

BMXXBP1200H

APT Stock No.:

SE-BMXXBP1200H

Brand:

SCHNEIDER ELECTRIC

Currently Unavailable – Back Order Required

Available For Back Order

Out of stock? No worries! You can back order this product.
To request a back order:

Tap the Request Back Order button below
Fill out the form with your Name, Email, Phone, and Company

Our team will review your request and contact you with availability and lead time.

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Same backplane used by Modicon M340, Modicon M580, and X80 modules

Stable in-rack module mounting way

Hot swapable feature for most I/O modules

Easy Quantum modernization

Description

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 12 bus X slots. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a power of 0.74W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 1.27kg. It is suitable for severe environments, medium to large process applications. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply and BMXP34 processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Compatible products

Cables (2)

Options (2)

Specifications

Main
Range of product	Modicon X80
Product or component type	Ruggedized backplane
Product specific application	For severe environments

Complementary
Number of slots	12 bus X
Product compatibility	BMXP34 processor BMXCPS power supply I/O module Specific application module
Power consumption in W	0.83 W
Electrical connection	1 connector (XBE) expansion module
Fixing mode	By 4 M4/M5/M6 screws, mounting on panel By 4 M4/M5/M6 screws, mounting on mounting plate
Height	103.7 mm

Dimensions Drawings

Dimensions

Mounting and Clearance

Minimum Clearance

Minimum Clearance of a typical installation in a cabinet with ducts

a Side clearance: > 40 mm (1.57 in.)

b Top and bottom clearance with surrounding objects: > 20 mm (0.79 in.)

1 Installation or casing

2 Wiring duct or tray

Mounting on panels

Rack Type

X Bus racks

BMXXBP0400

BMXXBP0400H

202.1 mm

(7.957 in)

214.8 mm

(8.457 in)

BMXXBP0600

BMXXBP0600H

267.5 mm

(10.531 in)

280 mm

(11.023 in)

BMXXBP0800

BMXXBP0800H

332.5 mm

(13.091 in)

345.2 mm

(13.591 in)

BMXXBP1200

BMXXBP1200H

462.9 mm

(18.224 in)

475.6 mm

(18.724 in)

Mounting on Telequick mounting plate

1 Telequick plate

2 Clip-on nuts

NOTE: The two right side screws are accessible until there is no rack extender module installed
