DN10W-485
Mfr. Part No.:
DN10W-485
APT Stock No.:
DCL-DN10W-485
Brand:
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 10,324.24
(Exc. VAT)
GHS 12,585.25
(Inc. VAT)
Available For Back Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Designed for strain gauge sensors: Supports load cells, pressure transducers, LVDTs, etc.
Easy setup: Simple and quick configuration using four push buttons.
High resolution: 16-bit A/D for precise measurements.
Superior accuracy: More than 0.012% F.S with excellent stability.
Fast sampling: 200 times per second for quick data acquisition.
Reliability: Built-in watchdog for system monitoring.
Compact design: 96×48×128mm with a cutting size of 92×45mm.
Lightweight: Weighs approximately 500g.
Optional power input: 24V available upon request.
Description
Dacell is providing ultra-precision load cells and various weighting and measuring products, which can be used in various fields of industries, based on 20 years of experiences in manufacturing of weighing and measuring products and with own superior technologies.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Specifications | Accuracy | |
|---|---|---|
| DN10W | ||
| Application sensor | Strain guage sensor (350Ω or 700Ω) | |
| Sensor authorized voltage (the number of Loadcell connection) |
DC 5V, Loadcell(350Ω) available 4 | |
| Zero adjustment range | 100% F·S (Auto Zero) | |
| Input signal | 0.5 ~ 3mV/V | |
| Display | -19999~99999 | |
| Display speed | Appox 30times/sec(Adjustment available by buff setting) | |
| Character height | 7Segment 5 digit LED 14mm | |
| Decimal point | Random setting available | |
| A/D converter | 16bit, Max. 100 times/sec | |
| D/A converter | 12bit | |
| Zero variation | within 0.5μV/℃ | |
| Sensitivity variation | within0.01%/℃ | |
| Voltage output | DC 0~±10V or 4~20mA (Selective use) | |
| Usage temperature range | -10℃ ~ 60℃ | |
| Humidity | less than 80% RH (no dew condensation) | |
| Power source used | 220V 50/60Hz (110V available by internal operation) |
|
| Relay output | ㆍUpper and lower limit comparison output ㆍ4 relay output ㆍContact capacity : AC 250V 5A ㆍRelay life time : more than 5,000,000times |
|
| Network | RS-232C | |
| Option | ㆍBCD Paralle out (OP-01) ㆍRS485 (OP-02) ㆍDAC ANALOG OUT (OP-03) |
|

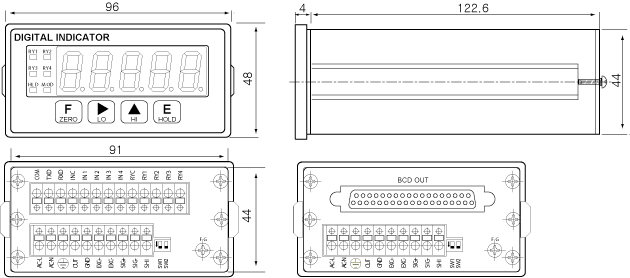

Dimensions Drawings
