DIGITAL INDICATOR - ANALOG IN/OUT 0-10 V 4-20 mA
Mfr. Part No.:
DN20W
APT Stock No.:
DCL-DN20W
Brand:
DACELL
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 10,250.77
(Exc. VAT)
GHS 12,495.69
(Inc. VAT)
Available For Back Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Designed for voltage/current output sensors: Supports pressure transducers, potentiometers, etc.
Easy setup: Quick configuration using four push buttons.
High resolution: 16-bit A/D for precise measurements.
Superior accuracy: More than 0.012% F.S with excellent stability.
Fast sampling: 100 times per second for quick data acquisition.
Built-in shunt calibration switch for easy calibration.
Reliability: Integrated watchdog for system monitoring.
Compact design: 96×48×128mm with a cutting size of 92×45mm.
Description
Dacell is providing ultra-precision load cells and various weighting and measuring products, which can be used in various fields of industries, based on 20 years of experiences in manufacturing of weighing and measuring products and with own superior technologies.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Specifications | Accuracy |
|---|---|
| Application sensor | Pressure sensor, Linear Pontentiometer(LPS, CTP) |
| Sensor authorized voltage (the number of Loadcell connection) |
DC 10V, 24V (Dip switch) |
| Zero adjustment range | 100% F·S (Auto Zero) |
| Input signal | DC 0~5V, 0~10V, 4~20mA |
| Display | -19999~99999 |
| Display speed | Appox 30times/sec(Adjustment available by buff setting) |
| Character height | 7Segment 5 digit LED 14mm |
| Decimal point | Random setting available |
| A/D converter | 16bit, Max. 100 times/sec |
| D/A converter | 12bit |
| Zero variation | within 0.5μV/℃ |
| Sensitivity variation | within0.01%/℃ |
| Voltage output | DC 0~10V or 4~20mA |
| Usage temperature range | -10℃ ~ 60℃ |
| Humidity | less than 80% RH (no dew condensation) |
| Power source used | 220V 50/60Hz (110V available by internal operation) |
| Relay output | AC 250V 5A, Relay life time : more than 5,000,000 times |
| Network | RS-232C |
| Option | ㆍBCD Paralle out (OP-01) ㆍRS485 (OP-02) ㆍDAC ANALOG OUT (OP-03) |

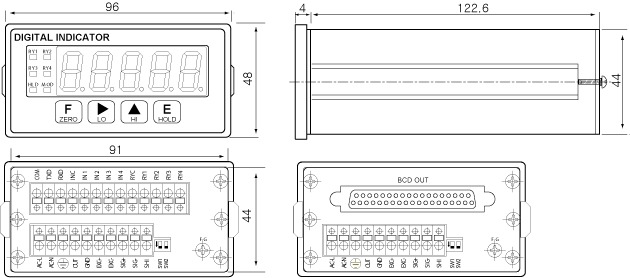

Dimensions Drawings
