DIGITAL WEIGHING CONTROLLER 6 RELAY
Mfr. Part No.:
DN510N-N
APT Stock No.:
DCL-DN510N-N
Brand:
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 9,962.63
(Exc. VAT)
GHS 12,144.44
(Inc. VAT)
Available For Back Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Control applications: Suitable for PACKER, FILLER, HOPPER, CHECKER, LIMIT SCALE, etc.
Totaling function: Supports up to 50 parts.
4-step control: SP1, SP2, SP3, SP4.
Built-in relays: 6 control relays (SP1, SP2, SP3, SP4, FINISH, NEAR ZERO).
Flexible relay output modes: LIMIT, PACKER, CHECKER1, CHECKER2.
Enhanced performance: Improved A/D conversion speed and resolution (Max. 200 times/sec, 1/520,000).
Description
Dacell is providing ultra-precision load cells and various weighting and measuring products, which can be used in various fields of industries, based on 20 years of experiences in manufacturing of weighing and measuring products and with own superior technologies.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Specifications | Accuracy |
|---|---|
| Load cell excitation | 10VDC±5%, 320mA |
| Input Signal | 0.5 ~ 3.0mV/V |
| A/D converting speed | 200times/sec |
| A/D converter resolution | 1/520,000 counts(19bits), Δ∑ |
| Non-linearity | 0.01% of full scale |
| Zero adjustment range | -0.6mV~42mV |
| Display Unit | 7 segment, 20.0mm(H)×13.0(W)mm |
| Annunciator | steady, zero, tare, gross, auto, print, hold,Interface |
| Decimal point position | 0, 0.0, 0.00, 0.000 |
| Keyboard | Number key and function key 12 PCS. |
| Temperature-drift | zero ±20PPM/℃, span ±20PPM/℃ |
| Non-linearity | 0.01% of full scale |
| Rear panel | Loadcell input : 5pin connector External control : 12pin input terminal (zero, tare,tare reset/hold/print, gross/hold reset/subprint,Current loop, RS232C) control relay output : 7pin terminal |
| Power | SMPS Free Voltage (85V~265V) |

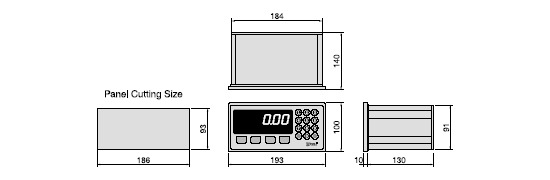

Dimensions Drawings
