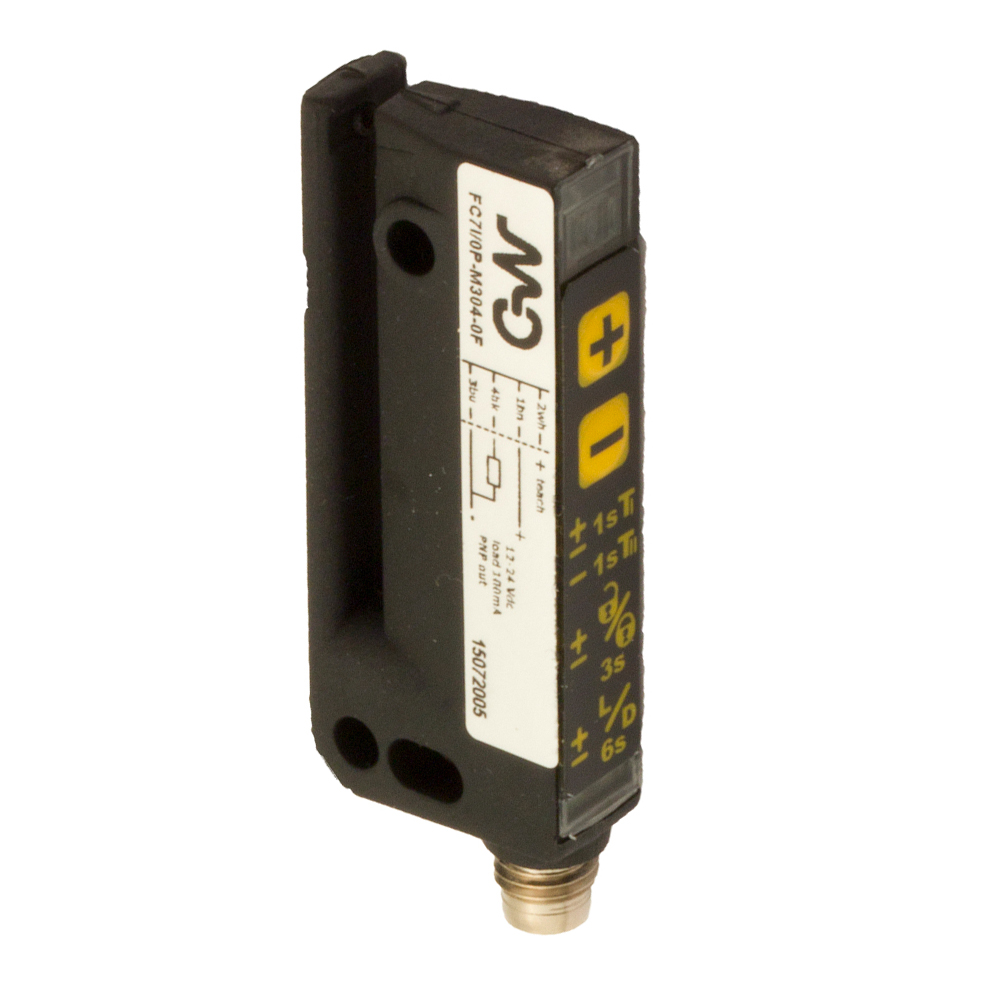

FORK LABEL SENSOR NPN/PNP M8 PLUG
Mfr. Part No.:
FC7I/0B-M304-0F
APT Stock No.:
DTS-FC7I/0B-M304-0F
Brand:
DATALOGIC
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 2,677.50
(Exc. VAT)
GHS 3,263.87
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Dinamic Teach-in or control panel and manual adjustment with "+/-" buttons
Minimum object detection 2 mm (gap between labels), 2 mm (label size)
Infrared emission
Light/Dark switching, selectable by button
Switching frequency 10 kHz
M8 connectors (4 pins): PNP or NPN, LO/DO selectable
-20 ...+60 °C temperature range
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Detection properties | |
|---|---|
| Nominal sensing distance | 3mm |
| minimum detectable object | 2mm |
| Sensitivity adjustment | Teach-in |
| +/-50 µm a 150m/min | +/-50 µm at 150m/min |
| 200 m/min | 200 m/min |
| 2mm | 2mm |
| Application | |
|---|---|
| Function Principle | Photoelectric slot |
CONNECTIONS
