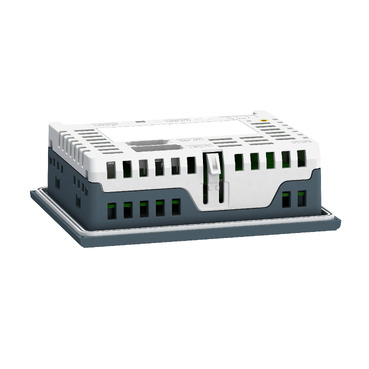

advanced touchscreen panel 320 x 240 pixels QVGA- 3.5" TFT - 96 MB
Mfr. Part No.:
HMIGTO1310
APT Stock No.:
SE-HMIGTO1310
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 17,120.52
(Exc. VAT)
GHS 20,869.91
(Inc. VAT)
Available For Back Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Excellent screen resolution
Touchscreen for displaying synoptic views
Multicolor status LED for indicating panel's operating mode
Easy installation and operation
Easy environment adaptation
Description

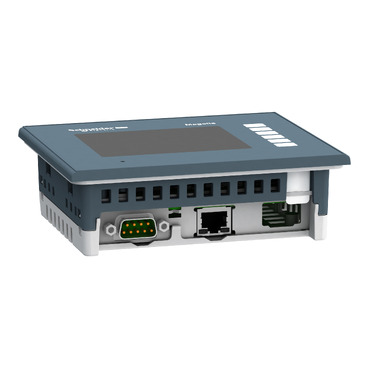

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display, 320 x 240 pixels (QVGA), 6 function keys and 96MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (1)
Specifications
| Main | |
|---|---|
| Range of product | Harmony GTO |
| Product or component type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 3.5 inch |
| Supply | External source |
| Control button type | 6 operation defined using Vijeo Designer push-button key F1...F6 |
| Operating system | Harmony |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) |
| Complementary | |
|---|---|
| Terminal type | Touchscreen display |
| Display type | Backlit colour TFT LCD |
| Display resolution | 320 x 240 pixels QVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white at 25 °C |
Dimensions Drawings
Mounting and Clearance
A | B | C | R | ||||
|---|---|---|---|---|---|---|---|
mm | in. | mm | in. | mm | in. | mm | in. |
118.5 (+1, -0) | 4.67 (+0.04, -0) | 92.5 (+1, -0) | 3.64 (+0.04, -0) | 1.6...5 | 0.06...0.2 | 3 max. | 0.12 max. |
,
When installing the panel in a slanted position with an incline more than 30°, the ambient temperature must not exceed 40 °C (104 °F). You may need to use forced air cooling (fan,A/C) to ensure the ambient operating temperature is 40°C or less (104 °F or less).
