touch panel screen 3''5 Color
Mfr. Part No.:
HMISTU655
APT Stock No.:
SE-HMISTU655
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 6,478.81
(Exc. VAT)
GHS 7,897.67
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Touchscreen for displaying synoptic views
High definition color TFT QVGA screen
High performance communication
Simplified installation
IP20, IP65 and NEMA 4X degree of protection
Description

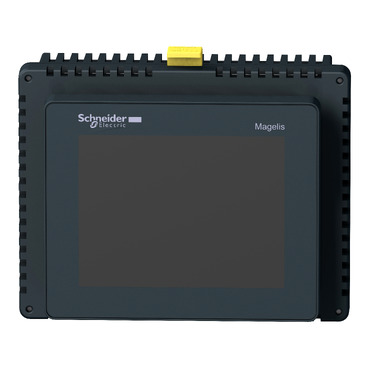

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (1)
Specifications
| Main | |
|---|---|
| Range of product | Harmony STO & STU |
| Product or component type | Touch panel screen |
| Software designation | Vijeo Designer |
| Operating system | Harmony |
| Processor name | CPU ARM9 |
| Complementary | |
|---|---|
| Display size | 3.5 inch |
| Display type | QVGA TFT colour touchscreen |
| Display colour | 65536 colours |
| Display resolution | 320 x 240 pixels QVGA |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours |
Dimensions Drawings
,
,
Mounting and Clearance
,
C (mm) | C (in.) | D (mm) | D (in.) |
|---|---|---|---|
+0 30.00 -0.20 | +0 1.18 -0.007 | +0 4.00 -0.20 | +0 0.15 -0.007 |
NOTE: With the tee option, the rotating torque that can be supported by the display module is 6 Nm (53.10 in-lb).
