Name: LVSXH218 - PrismaSeT XS-Flush 2Rx18M Smoked Door-IP40-1TB | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-LVSXH218
Price: 2609.11 GHS
Availability: InStock
Rating: 4.3 (25 reviews)

View allPrismaset Xs

PrismaSeT XS-Flush 2Rx18M Smoked Door-IP40-1TB

Mfr. Part No.:

LVSXH218

APT Stock No.:

SE-LVSXH218

Brand:

SCHNEIDER ELECTRIC

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

~~GHS 2,609.11~~

GHS 2,217.7415% OFF

(Exc. VAT)

~~GHS 3,130.93~~

GHS 2,661.2915% OFF

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Ease of installation

Removable top/bottom entry cables

IP30 degree of protection becoming IP40 with additional door

Wider range of terminal blocks, screw or screwless, provided or available as accessories

Enhanced level ergonomics for electricians and installers

Description

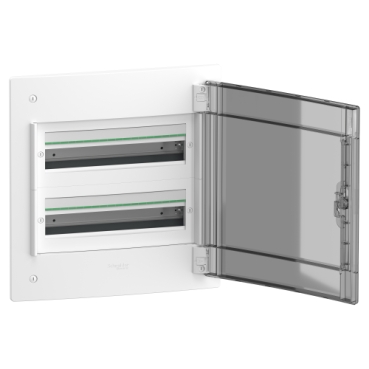

This PrismaSeT XS enclosure is a flush mounted distribution enclosure. This plastic enclosure is composed of 2 rows of 18 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40 closed door. It is provided with a transparent smoked door. The colour of the enclosure and the front plate is white (RAL 9003). This ready-to-use enclosure is intended in residental and tertiary sectors. It is devised for electricians, providing ergonomics and flexibility of installation. The cables can enter via the top or bottom of the enclosure by removable cable entry plates. It enables entry by cable or tube. It is equipped with 1 back plate and 2 DIN rails. The rails are removable and facilitate wiring and maintenance operations. It comes with 1 earth terminal block. This terminal block provides 24 outgoers (3x25mm²+21x4mm²). It is provided with 1 identification label, 1 label protector and 1 blanking plate strip. The electrical insulation class is class II. The Ui rated insulation voltage is 400V. The overvoltage category is II. The In rated current is up to 90A. It complies with IEC 60670-1 and 24, IEC 61439-1 and 3 standards. The total dimensions are (W) 486mm x (H) 510mm x (D) 129mm. The product weight is 4.280kg. The enclosure, the back plate, the front plate and the door are made of technoplastic. The resistance of the plastic to flames and to abnormal heat is 650°C for the enclosure, the front plate and the door, and is 850°C for the back plate. The IK degree of protection is IK09 closed door. The operating temperature are -25°C to 60°C.

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Compatible products

Distribution (1)

Specifications

Main
Range	PrismaSeT
Product name	XS
Product or component type	Enclosure
enclosure type	Distribution enclosure
Enclosure mounting	Flush

Complementary
Width	Total: 486 mm Embedded: 456 mm
Height	Total: 510 mm Embedded: 480 mm
Depth	Total : 137.5 mm Embedded : 86.5 mm
Internal depth	80 mm
Number of 18 mm modules per row	18
Number of horizontal rows	2
