Name: LVSXH524 - PrismaSeT XS-Flush 5Rx24M TransparentDoor-IP40-1TB | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-LVSXH524
Price: 8892.30 GHS
Availability: InStock
Rating: 4.4 (15 reviews)

View allPrismaset Xs

PrismaSeT XS-Flush 5Rx24M TransparentDoor-IP40-1TB

Mfr. Part No.:

LVSXH524

APT Stock No.:

SE-LVSXH524

Brand:

SCHNEIDER ELECTRIC

Currently Unavailable – Back Order Required

Subtotal (1 unit)**

GHS 8,892.30

(Exc. VAT)

GHS 10,670.76

(Inc. VAT)

Available For Back Order

Out of stock? No worries! You can back order this product.
To request a back order:

Tap the Request Back Order button below
Fill out the form with your Name, Email, Phone, and Company

Our team will review your request and contact you with availability and lead time.

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Description

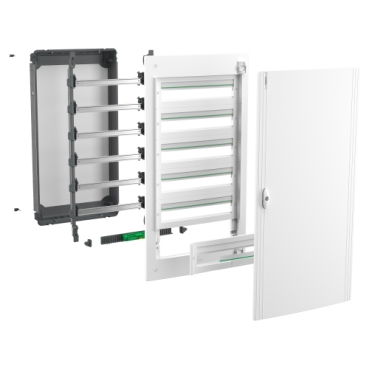

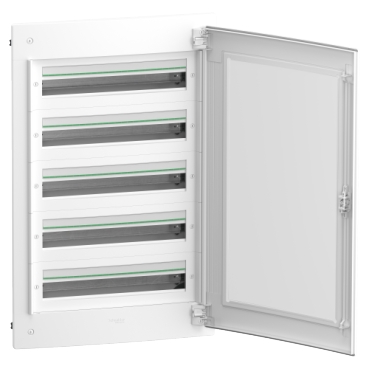

This PrismaSeT XS enclosure is a flush mounted distribution enclosure. This metal and plastic enclosure is composed of 5 rows of 24 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40 closed door. It is provided with a transparent colourless door. The colour of the enclosure and the front plate is white (RAL 9003). This ready-to-use enclosure is intended in residental and tertiary sectors. It is devised for electricians, providing ergonomics and flexibility of installation. The cables can enter via the top or bottom of the enclosure by removable cable entry plates. It enables entry by cable or tube. It is equipped with 1 back plate and 5 DIN rails. The rails are removable and facilitate wiring and maintenance operations. It comes with 1 earth terminal block. This terminal block provides 48 outgoers (6x25mm² + 42x4mm²). It can also accommodate a vertical Acti9 VDIS distributor 24 modules size. It is provided with 5 identification labels, 5 label protectors, 2 blanking plate strips and some cable fixing hardware. The electrical insulation class is class II. The Ui rated insulation voltage is 400V. The overvoltage category is II. The In rated current is up to 125A. The dissipated power is 133W. It complies with IEC 60670-1 and 24, IEC 61439-1 and 3 standards. The total dimensions are (W) 648mm x (H) 960mm x (D) 129mm. The product weight is 23.540kg. The enclosure and the front plate are made of technoplastic. The back part is made of metal and plastic, and the door is made of glass. The resistance of the plastic to flames and to abnormal heat is 750°C for the enclosure and the front plate, and 850°C for the back part. The IK degree of protection is IK09 with closed door. The operating temperature are -25°C to 60°C.

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Compatible products

Distribution (1)

Specifications

Main
Range	PrismaSeT
product name	XS
Product or component type	Enclosure
Enclosure type	Distribution enclosure
Enclosure mounting	Flush

Complementary
Width	Total: 648 mm Embedded: 618 mm
Height	Total: 960 mm Embedded: 930 mm
Depth	Total : 129 mm Embedded : 86 mm
Internal depth	80 mm
Number of 18 mm modules per row	24
Number of horizontal rows	5
