MICROREGULATOR 0.5-10 BAR 1/4

Mfr. Part No.:

M004-R00

APT Stock No.:

CMZ-M004-R00

Brand:

Camozzi

Back Order

Subtotal (1 unit)**

GHS 588.84

(Exc. VAT)

GHS 717.80

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Description

Series M pressure regulator is available with G1/8 and G1/4 ports. Its design incorporates a diaphragm and relieving so as to allow decremental adjustments as well. Microregulators are available with different regulation types: non-relieving, very sensitive self-relieving (through a light air leak) and VS (valve with fast draining). The VS version is used when a regulator should be inserted between the valve and cylinder, or capacity, without any negative influence on the exhaust.

Specifications

Main Specs
MIN OPERATING PRESSURE [BAR]
0.5 ÷ 10 bar
NAME OF SERIES
M
DESIGN
Self relieving
ADUSTMENT
Without high relief flow (standard)
SIZE
0
PRESSURE GAUGE
Without pressure gauge (standard)
FUNCTION
REGULATOR
PORTS
G1/4
General Specs for Pressure microregulators for use with water and fluids
Construction
Diaphragm type
Materials
Body - non nickel-plated brass
spring: stainless steel
seals: diaphragm in EPDM (H versions only)
Ports
G1/8 - G1/4
Weight
Kg 0.235
Pressure gauge ports
G1/8
Mounting
In-line or panel mounting (in any position)

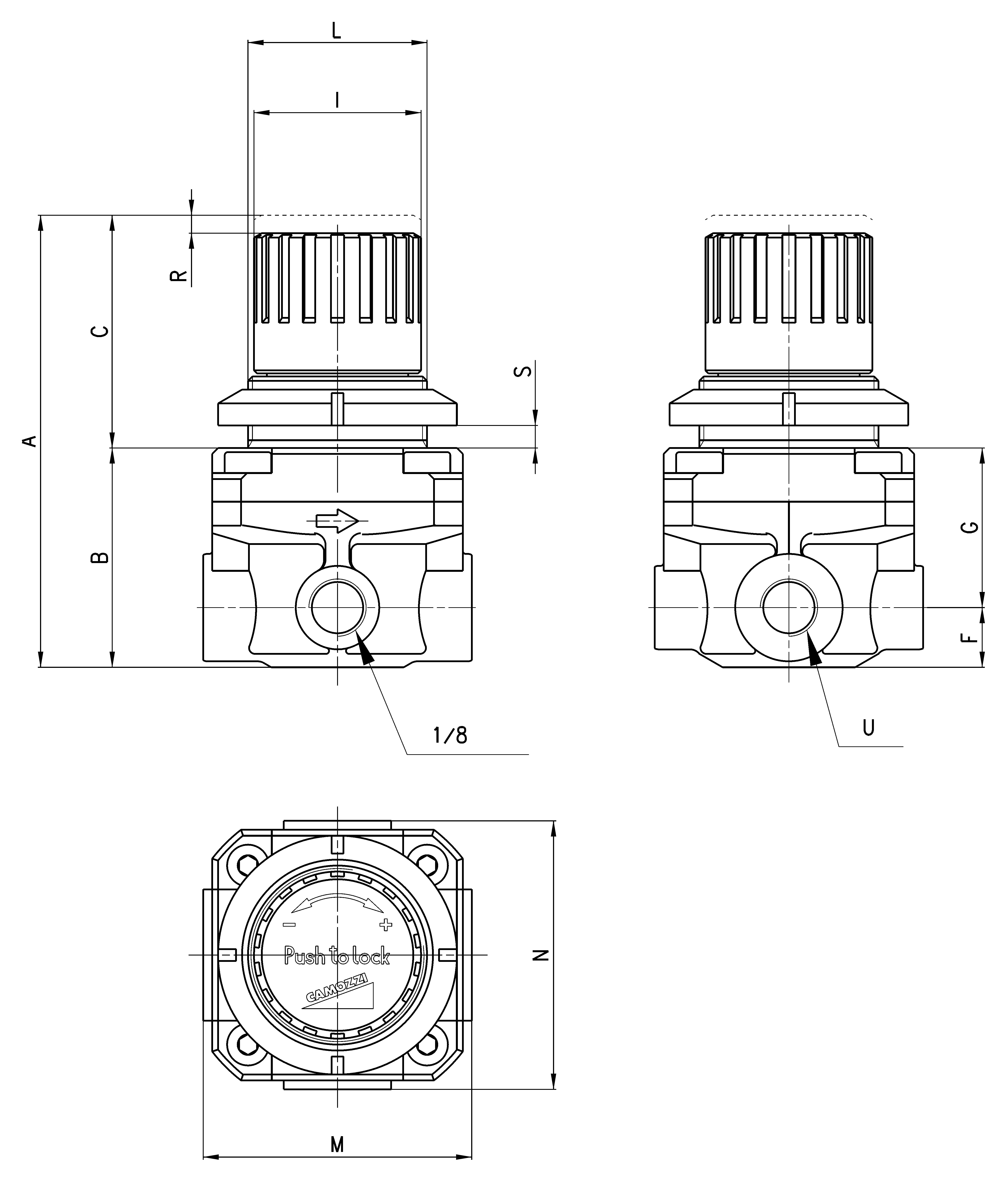

Dimensions
