PRESSURE FILTER REGULATOR MC SERIES 1/4
Mfr. Part No.:
MC104-D00
APT Stock No.:
CMZ-MC104-D00
Brand:
Camozzi
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 1,181.25
(Exc. VAT)
GHS 1,439.94
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
Series MC filter regulators are available with ports G1/4, G3/8 and G1/2. They combine the features of the filters and regulators and have smaller overall dimensions than the two separate components.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main Specs | |
|---|---|
| FILTER ELEMENT | 25μm (standard) |
| TYPE OF REGULATOR | Without by-pass valve (standard) |
| OPERATING PRESSURE | 0.5 ÷ 10 |
| NAME OF SERIES | MC |
| SIZE | G1/4 |
| PRESSURE GAUGE | Without pressure gauge (standard) |
| CONDENSATE DRAIN | Manual semiautomatic, self-relieving |
| FUNCTION | FILTER-REGULATOR |
| PORTS | G1/4 |
| General Specs for Filter-regulators | |
|---|---|
| Construction | Compact modular with filtering element in HDPE |
| Materials | Zama, NBR, technopolymer |
| Ports | G1/4 G3/8 G1/2 |
| Condensate capacity | cm³ 28 72 72 |
| Weight | kg 0,443 0,948 0,928 |
| Mounting | Vertical, in-line or wall-mounting |

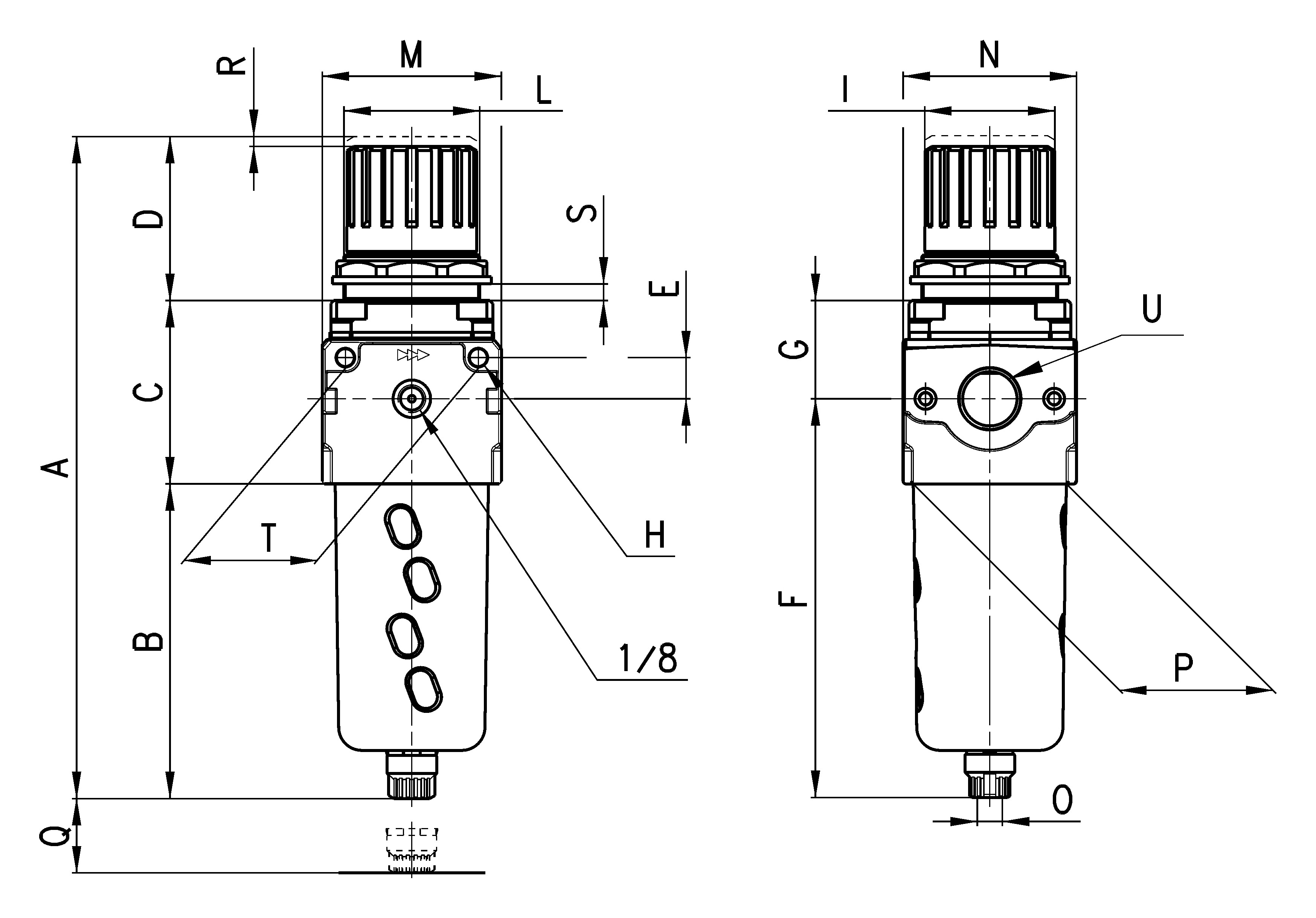

Dimensions Drawings
