EP MVS CB 1250A 50kA 4P MDO ETA2 drawout manual Circuit breaker
Mfr. Part No.:
MVS12N4MW2A
APT Stock No.:
SE-MVS12N4MW2A
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 55,414.07
(Exc. VAT)
GHS 67,549.75
(Inc. VAT)
Available For Back Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description

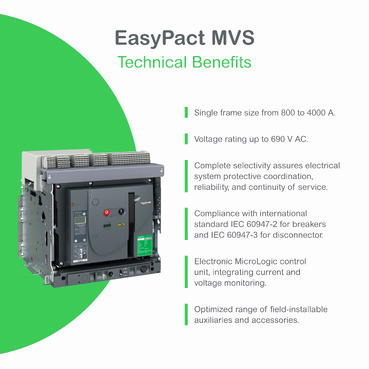

EasyPact MVS12N is a 1250A circuit breaker. The breaking capacity (Icu) is 50kA rms at 440VAC 50/60Hz. The operational voltage is 690VAC. This version is 4 poles drawout. Electronic trip unit provides LI protection include Overload and Instantaneous protection. A digital LCD screen continuously displaysI1, I2, I3, IN and maximeter(Imax). Fault indications LED indicate 3 types of fault which are Ir (Overload), Ii (Instantaneous) and Ap (Internal fault). It could be manual operated without gear motor, closing release and opening release. EasyPact MVS is compliant with international standards (IEC 60947, CE, EAC and RoHS). The dimension is 439mm x 556mm x 395mm (H x W x D).
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range | EasyPact |
| product name | MVS12N |
| Device short name | MVS12N |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 4P |
| Protected poles description | 4P 4d |
| Neutral position | Left |
| [In] rated current | 1250 A at 40 °C |
| Network type | AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity code | N |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category B |
| Trip unit name | ETA2I |
| Trip unit technology | Electronic |
| Trip unit rating | 1250 A |
| Complementary | |
|---|---|
| Network frequency | 50/60 Hz |
| Control type | Manually operated |
| Mounting mode | Drawout |
| Mounting support | Rail Base plate |
| Connection position | Horizontal Vertical |
| Location of connection | Rear |
Dimensions Drawings
Assembly
Performance Curves
