PRESSURE REGULATOR MX3 SERIES 1
Mfr. Part No.:
MX3-1-R000
APT Stock No.:
CMZ-MX3-1-R000
Brand:
Camozzi
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 2,538.70
(Exc. VAT)
GHS 3,094.68
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
The availability of constant values of the secondary pressure ensures performance optimization and energy saving. The tamper-proof system allows to adjust pressure safely with primary pressure compensation. All reducers are equipped with an integrated locking system and built-in pressure gauges for a more compact product. The regulators Series MX are suitalbe also for panel mountings. The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs. A special configurator, available on Camozzi website at http://catalogue.camozzi.com (sec. Configurators), allows the customer to choose the most suitable solution for his application, selecting single components or by configuring assembled FRLs.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main Specs | |
|---|---|
| MIN OPERATING PRESSURE [BAR] | 0.5 ÷ 10 bar (standard) |

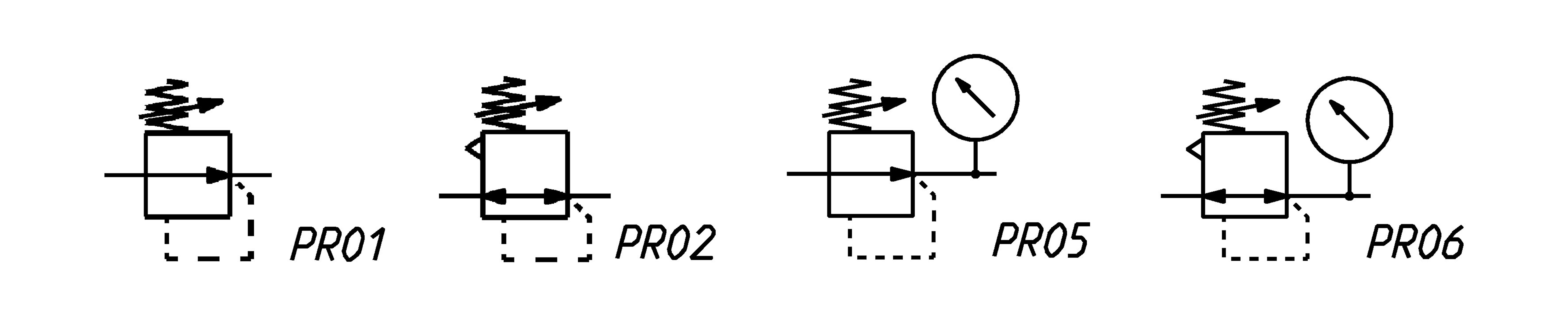

| TYPE OF REGULATOR | Pressure regulator |
| NAME OF SERIES | MX |
| DESIGN | Relieving (standard) |

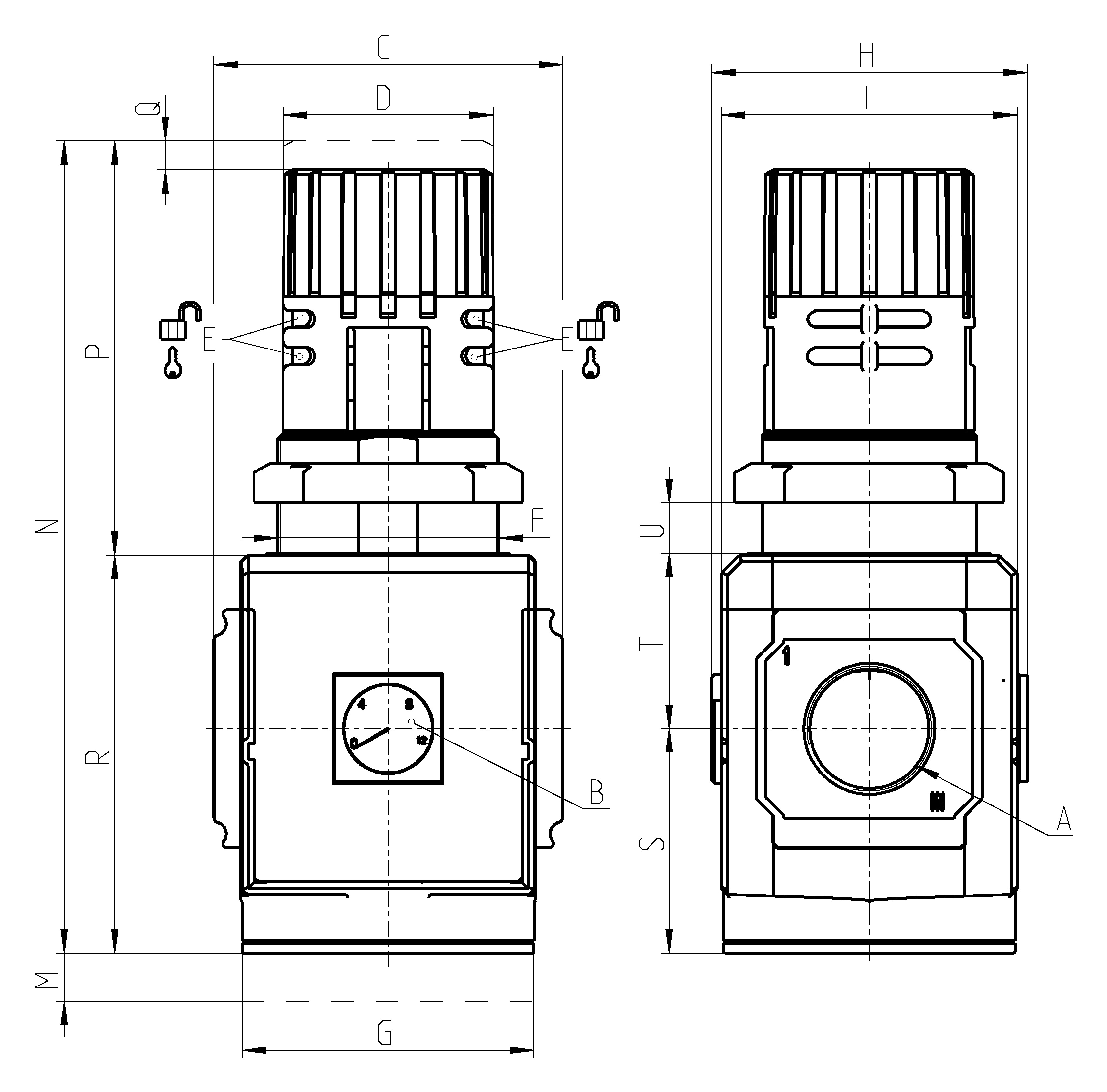

| SIZE | G3/4 - G1 |
| PRESSURE GAUGE | Without pressure gauge (with threaded port for gauges) |
| PORTS | G1 |
| FLOW DIRECTION | From left to right (standard) |
| General Specs for Pressure regulators | |
|---|---|
| Construction | Modular, compact, diaphragm type |
| Materials | See TABLE OF MATERIALS on the following page |
| Ports | MX2: G3/8 - G1/2 - G3/4 - MX3: G3/4 - G1 Manifold regulator: G1/2 (MX2 only) |
| Mounting | Vertical in-line, wall-mounting (by means of clamps), panel mounting |
| Operating temperature | -5°C ÷ 50°C up to 16 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) -5°C ÷ 60°C up to 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) |
| Inlet pressure | 0 ÷ 16 bar |
