Side panels, PanelSeT SFN, for electrical enclosure H1600 D600mm, external fixing, set of 2
Mfr. Part No.:
NSY2SPN166
APT Stock No.:
SE-NSY2SPN166
Brand:
SCHNEIDER ELECTRIC
Currently Unavailable – Back Order Required
Available For Back Order
Out of stock? No worries! You can back order this product.
To request a back order:
- Tap the Request Back Order button below
- Fill out the form with your Name, Email, Phone, and Company
Our team will review your request and contact you with availability and lead time.
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
These two steel side panels are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. They have a nominal height and depth of 1600 mm and 600 mm, respectively. The panels are made of steel sheet. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color. This product is qualified as a green premium, with minimal use of hazardous substances. This product is qualified as a green premium, with minimal use of hazardous substances
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (9)
Spare parts (2)
Specifications
| Main | |
|---|---|
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Side panel |
| Application | Multi-purpose |

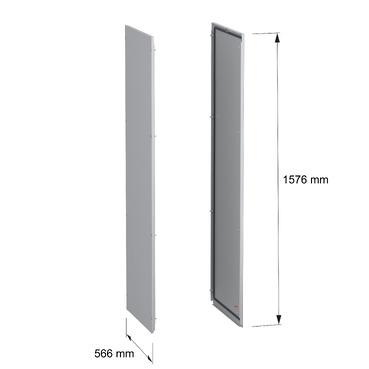

| For enclosure nominal dimensions | - H: 1600 mm D: 600 mm |
| Mounting location | Sides of enclosure |
| Complementary | |
|---|---|
| Range compatibility | PanelSeT PanelSeT SFN |
| Device composition | fixing elements 2 side panel |
| Material | Steel |
| Net weight | 120.6 kg |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
