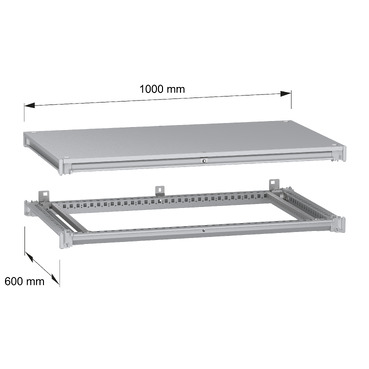

Bottom and top frame, PanelSeT SFN, for electrical enclosure W1000 D600mm, roof included
Mfr. Part No.:
NSYSFNC106
APT Stock No.:
SE-NSYSFNC106
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeShipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
These steel frameworks are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. This set of top and bottom frames and roof has a nominal width and depth of 1000 mm and 600 mm, respectively. It is made of galvanized steel for durability. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color. This product is qualified as a green premium, with minimal use of hazardous substances.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (6)
Specifications
| Main | |
|---|---|
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Application | Multi-purpose |
| Product or component type | Framework kit |
| For enclosure nominal dimensions | - W: 1000 mm D: 600 mm |
| Mounting location | Top of vertical uprights Bottom of vertical uprights |
| Range compatibility | PanelSeT PanelSeT SFN |
| Device composition | 1 bottom frame 1 roof 1 top frame |
| Quantity per set | Set of 1 |
| Complementary | |
|---|---|
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws - each corner of enclosure location |
| Height | 110 mm |
| Width | 1000 mm |
