Interface plug-in relay, 8 A, 2 CO, 24 V DC
Mfr. Part No.:
RSB2A080BD
APT Stock No.:
SE-RSB2A080BD
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 59.47
(Exc. VAT)
GHS 72.49
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Help to reduce the size of enclosures enabling it to be mount nearly everywhere
Provides economical solution for the implementation of many switching functions with large number of contacts
It is a flexible design for space-saving
Plug in type allows for easy installation and maintenance
The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts
Description

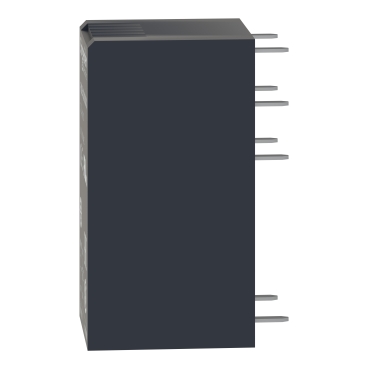

This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Series name | RSB series |
| Product or component type | Plug-in relay |
| Relay type | Interface relay |
| Contacts type and composition | 2 C/O |
| Contact operation | Standard |
| Status LED | Without |
| [Uc] control circuit voltage | 24 V DC |
| Control type | Without lockable test button |
| [Ithe] conventional enclosed thermal current | 8 A at -40…40 °C |
| Complementary | |
|---|---|
| Average resistance | 1440 Ohm network: DC at 20 °C +/- 10 % |
| [Ue] rated operational voltage | 16.8...36 V DC |
| [Uimp] rated impulse withstand voltage | 3.6 kV conforming to IEC 61000-4-5 |
| [Ie] rated operational current | 4 A (AC-1/DC-1) NC conforming to IEC 8 A (AC-1/DC-1) NO conforming to IEC |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60947 |
| Maximum switching voltage | 300 V DC conforming to IEC |

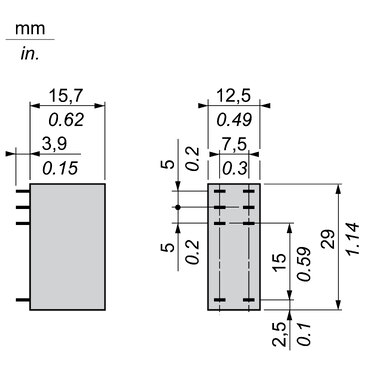

Dimensions Drawings
Connections and Schema
NOTE: For DC input, A1 have to be +, otherwise it would short circuit from protection module
Performance Curves
Durability (inductive load) = durability (resistive load) x reduction coefficient.
Resistive AC load
X Switching capacity (kVA)
Y Durability (Number of operating cycles)
Reduction coefficient for inductive AC load (depending on power factor cos ϕ)
Y Reduction coefficient (A)
Maximum switching capacity on resistive DC load
X Voltage DC
Y Current DC
Note : These are typical curves, actual durability depends on load, environment, duty cycle, etc.
