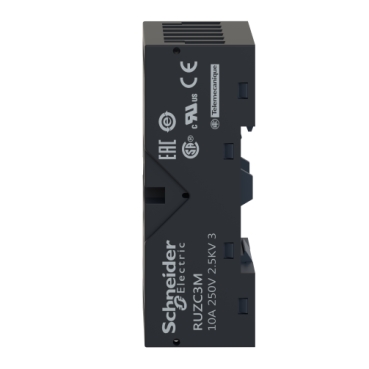

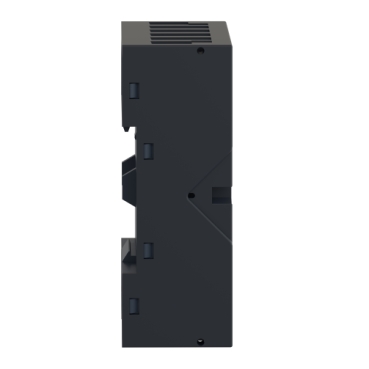

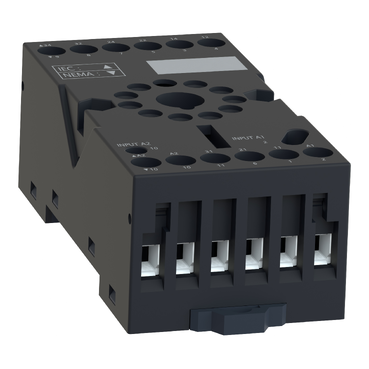

Socket, mixed contact, 10 A, relay type RUMC3, screw connector, 250 V AC
Mfr. Part No.:
RUZC3M
APT Stock No.:
SE-RUZC3M
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 95.76
(Exc. VAT)
GHS 116.73
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Help to reduce the size of enclosures enabling it to be mount nearly everywhere
Compatible with plug in control relay Schneider Electric
It is flexibility design for space-saving
Easy installation and connect to the relay from its socket
Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
Description
"This Harmony RUZ plug-in relay socket has a coil control voltage of 250V AC and has mixed contacts with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Harmony Electromechanical Relays Harmony Timer Relays |
| Device short name | RUZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RUM with 3 C/O contact Plug-in relay RE48A with 2 C/O contact |
| [Ith] conventional free air thermal current | 10 A |
| [Ue] rated operational voltage | < 250 V |
| Contacts type and composition | 3 C/O |
| Complementary | |
|---|---|
| Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Cylindrical |
| Tightening torque | < 1 N.m for M3.5 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
Dimensions Drawings
