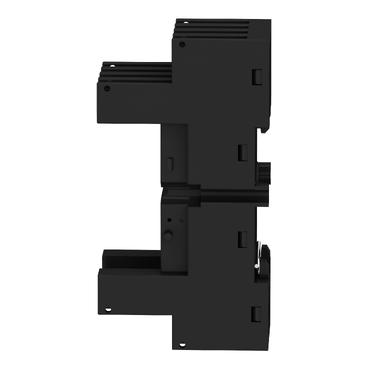

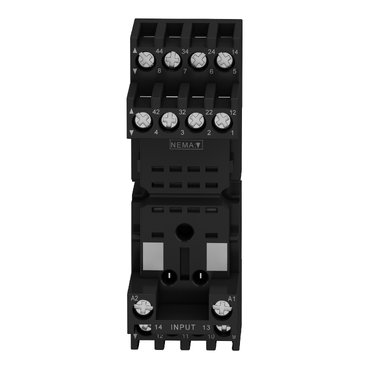

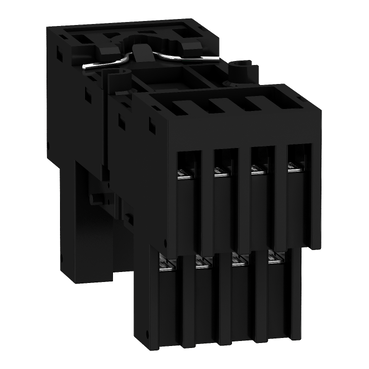

Socket, mixed contact, relay type RXM2 RXM4, connector connection, 250 V AC

Mfr. Part No.:

RXZE2M114M

APT Stock No.:

SE-RXZE2M114M

Brand:

Schneider Electric

Back Order

Subtotal (1 unit)**

GHS 86.83

(Exc. VAT)

GHS 105.85

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Help to reduce the size of enclosures enabling it to be mount nearly everywhere

Compatible with plug in control relay Schneider Electric

It is flexibility design for space-saving

Easy installation and connect to the relay from its socket

Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

Description

"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."

Specifications

Main
Range of product
Harmony Electromechanical Relays
Harmony Timer Relays
Product compatibility
Plug-in relay RXM with 2 C/O contact
Plug-in relay RXM with 4 C/O contact
Plug-in relay REXL with 2 C/O contact
Plug-in relay REXL with 4 C/O contact
Plug-in relay 782H with 4 C/O contact
Device short name
RXZ
[Ith] conventional free air thermal current
10 A
Product or component type
Socket
Contacts type and composition
4 C/O
Complementary
[Ue] rated operational voltage
< 250 V conforming to IEC
< 300 V conforming to UL
Connections - terminals
Screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Shape of pin
Flat
Tightening torque
< 1 N.m for M3 screw(s)
Fixing mode
By screw (panel)
Clip-on (35 mm symmetrical DIN rail)
Wire stripping length
8 mm

Dimensions Drawings

Socket
Socket with Mixed Contact Terminals and Connector


1 Relay

2 Protection Module

3 Carriage Stirrup
