Name: TM200CE24R - Controller M200 14DI/10DO Relay+Ethernet | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-TM200CE24R
Price: 4676.10 GHS
Availability: InStock
Rating: 4.3 (40 reviews)

View allEasy Modicon M200

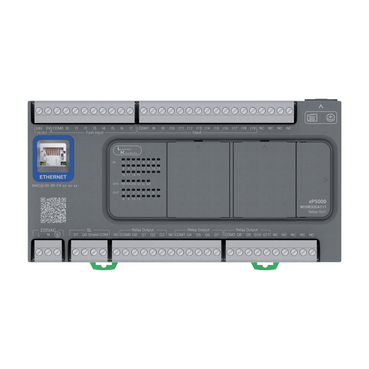

Controller M200 14DI/10DO Relay+Ethernet

Mfr. Part No.:

TM200CE24R

APT Stock No.:

SE-TM200CE24R

Brand:

SCHNEIDER ELECTRIC

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

GHS 4,676.10

(Exc. VAT)

GHS 5,611.32

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Designed for simple machines

Easy to test and debug thanks to the standard USport and removable terminal blocks

Easy to duplicate without special skills using the Micro SD memory card

Easy to access information by scanning the QRcode carved on the front of the controller

Monitoring for up to 196 I/O and 2 axis motion control

Description

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 4 fast inputs, 4 high speed inputs, 6 regular inputs and 10 relay outputs, normally opened relay output. It is a Modicon logic controller with an input voltage of 24V DC, a discrete output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are mini B USB 2.0, serial link 1 and RS485, serial link 2 and RS232/RS485, ethernet Modbus TCP/IP, and serial link 2 and RS485. It is a controller with an internal flash of 512byte and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 130mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.413kg. Designed for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Compatible products

Options (5)

Specifications

Main
Range of product	Easy Modicon M200
Product or component type	Logic controller
[Us] rated supply voltage	100...240 V AC
Discrete I/O number	24
Discrete input number	I2...I5: 4 fast input I0, I1, I6, I7: 4 high speed input I8...I13: 6 regular input
Discrete output number	10 relay
Discrete input voltage	24 V
Discrete input voltage type	DC
Discrete input current	7 mA for input
Discrete input logic	Sink or source (positive/negative) type 1 conforming to IEC 61131-2
Discrete output voltage	24 V DC 220 V AC
Discrete output current	2 A
Discrete output type	Relay normally open
Power consumption in VA	52…64 VA at 100...240 V AC (with max I/O)

Complementary
Maximum number of I/O expansion module	4 with 128 discrete output(s) for transistor output 4 with 74 discrete output(s) for relay output
Supply voltage limits	85…264 V
Network frequency	50/60 Hz
Inrush current	50 A
Voltage state 1 guaranteed	>= 15 V for input
Voltage state 0 guaranteed	<= 5 V for input
