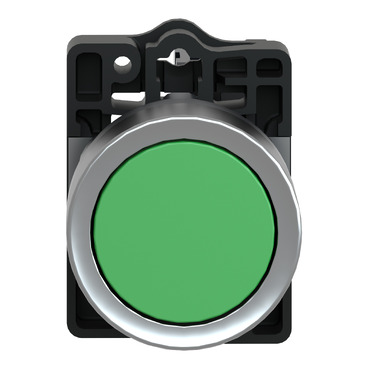

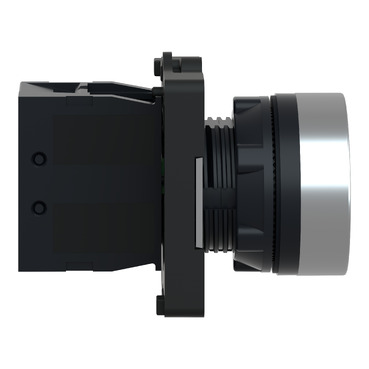

Complete push button, Easy Harmony XA2, plastic, flush, green, 22mm, spring return, unmarked, 1NO
Mfr. Part No.:
XA2EA31
APT Stock No.:
SE-XA2EA31
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 66.88
(Exc. VAT)
GHS 81.53
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description

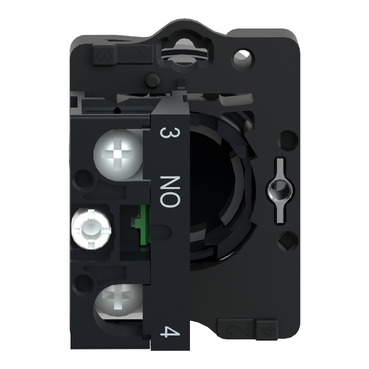

This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular flush green pushbutton. This pushbutton operates with a spring return / impulse mechanism. This flush pushbutton provides an ergonomic interface for controlling machines. It has 1 NO contact with slow-break operation. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Shipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products

Spare parts (1)
Specifications
Main | |
---|---|
Range of product | Easy Harmony XA2 |
Product or component type | Complete push-button |
Device short name | XA2 |
Bezel material | Plastic |
Fixing collar material | Plastic |
Complementary | |
---|---|
Mounting diameter | 22.5 mm |
Sale per indivisible quantity | 1 |
Protective treatment | TC |
Operating position | Any position |
Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
Fixing mode | Fixing nut: 2…2.4 N.m |
Dimensions Drawings
(e) Clamping thickness: 1 to 6 mm / 0.04 to 0.24 in.
Mounting and Clearance
(1) Diameter on finished panel or support
(2) Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm 0+0.4 / 0.88 in. 0+0.016)
