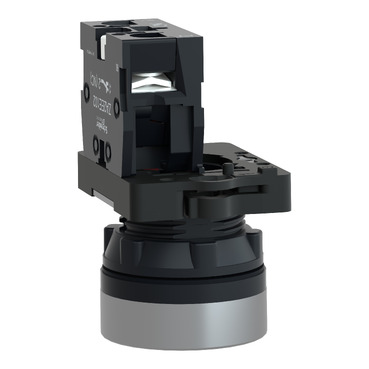

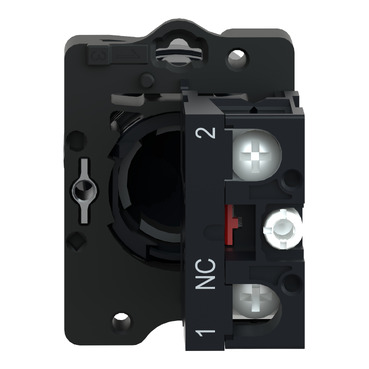

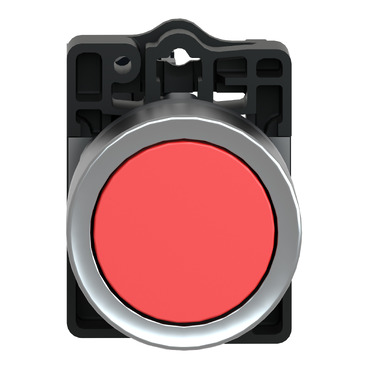

Complete push button, Easy Harmony XA2, plastic, flush, red, 22mm, spring return, unmarked, 1NC

Mfr. Part No.:

XA2EA42

APT Stock No.:

SE-XA2EA42

Brand:

Schneider Electric

Back Order

Subtotal (1 unit)**

GHS 66.88

(Exc. VAT)

GHS 81.53

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Description

This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular flush red pushbutton. This pushbutton operates with a spring return / impulse mechanism. This flush pushbutton provides an ergonomic interface for controlling machines. It has 1 NC contact with slow-break operation. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

Compatible products

schneider-electric xa2ea42 Picture

Spare parts (1)

Specifications

Main
Range of product
Easy Harmony XA2
Product or component type
Complete push-button
Device short name
XA2
Bezel material
Plastic
Fixing collar material
Plastic
Complementary
Mounting diameter
22.5 mm
Sale per indivisible quantity
1
Protective treatment
TC
Operating position
Any position
Fixing center
>= 30 x 40 mm (panel) - thickness: 1…5 mm
Fixing mode
Fixing nut: 2…2.4 N.m

Dimensions Drawings

Dimensions


(e) Clamping thickness: 1 to 6 mm / 0.04 to 0.24 in.


Mounting and Clearance

Panel Cut-Out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals


(1) Diameter on finished panel or support

(2) Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm 0+0.4 / 0.88 in. 0+0.016)
