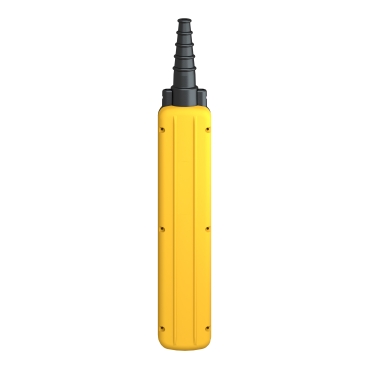

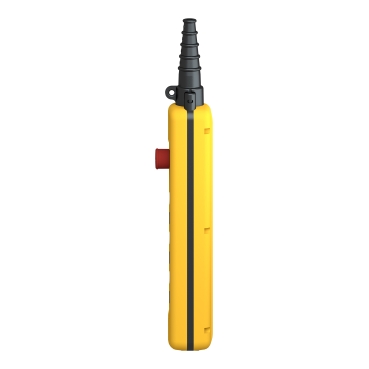

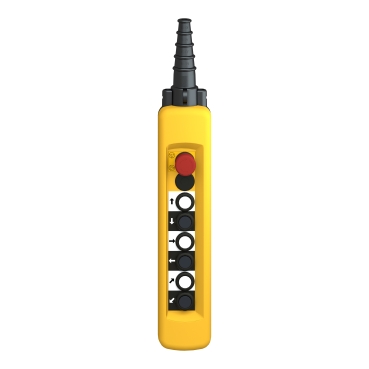

pendant control station XAC-A - 6 pushbuttons 1 Emergency stop

Mfr. Part No.:

XACA6813

APT Stock No.:

SE-XACA6813

Brand:

Schneider Electric

Back Order

Subtotal (1 unit)**

GHS 1,647.64

(Exc. VAT)

GHS 2,008.47

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

10A fuse protection

Vibration resistant screw clamp connection terminals

Simple, assured operator pendant controls

Double insulated polypropylene casing

Completely ready for use enclosure

Description

"This product is part of the Harmony XAC range, an offer of pendant control stations for Ø 22 mm plastic signaling units." "This pendant control station provides double insulation and mechanical interlocking between pairs." "It has 6 pushbuttons and 1 emergency stop for control circuits." "It is a pendant control station with a rated voltage of 600V and conventional enclosed thermal current of 10A." "It is furnished with screw clamp terminals for electrical connection." "It offers mechanical durability of about 1 million cycles. It is an IP65, IK08 and NEMA 1/3/4/13 rated product." "The control station is made of polypropylene and available in yellow color. It weighs 0.935kg." "It is suitable for hoist and traveling cranes for control of single speed motor. It is ideal for industry and service sector applications." "This product is certified by GOST and CCC. It meets UL 508, EN/IEC 60947-5-1, EN/IEC 60204-32 and CSA C22.2 No 14 standards." "It is compatible with ZB2BE102 for emergency stop and ZB2BE102, ZB2BE101 for each direction." "It is designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of IEC standards." "Pendant control stations for Ø 22mm plastic signaling units."

Specifications

Main
Range of product
Harmony XAC
Product or component type
Pendant control station
Device short name
XACA
Complementary
Control station type
Double insulated
Enclosure material
Polypropylene
Electrical circuit type
Control circuit
Enclosure type
Complete ready for use
Control station application
Control of single speed hoist motor
Control station composition
6 push-buttons + 1 emergency stop
