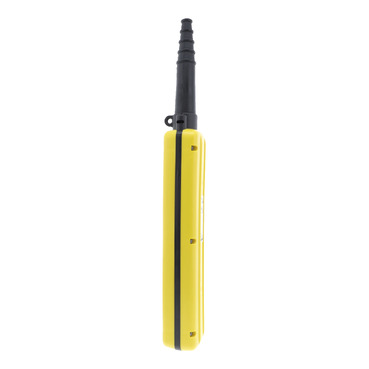

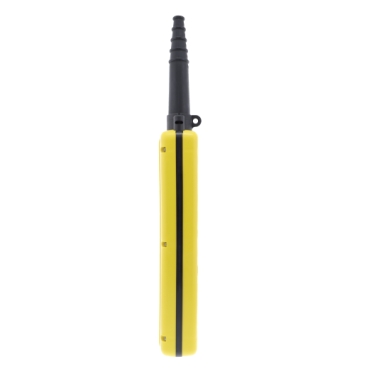

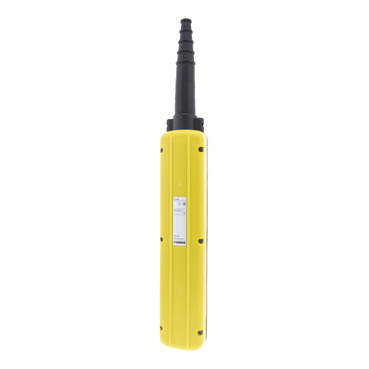

Pendant control station, plastic, yellow, 8 push buttons
Mfr. Part No.:
XACA871
APT Stock No.:
SE-XACA871
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 2,199.97
(Exc. VAT)
GHS 2,681.76
(Inc. VAT)
Available For Back Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Impact resistant yellow enclosure for increased visibility
Solid rubber grommet junction with cable, for maximum water tightness
Ergonomic pistol grip allowing for single handed control of your hoist, crane
Wide availability throughout an extensive distribution network
Description
This Harmony XAC, pendant station is ideal to control single speed hoisting applications. This pistol grip shaped pendant control station is ideal for direct control with heavy work gloves of mechanical handling applications such as overhead cranes, tower cranes, fixed hoists and beam hoists. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a solid rubber grommet junction with cable, for maximum water tightness. Its ergonomic pistol grip allows single handed control of your hoist and crane.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Harmony XAC |
| Product or component type | Pendant control station |
| Device short name | XACA |
| Complementary | |
|---|---|
| Control station type | Double insulated |
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| Enclosure type | Complete ready for use |
| Control station application | Control of single speed hoist motor |
| Control station composition | 8 push-buttons |
Dimensions Drawings
Below drawing shows a product with 6 cut-outs. Select the number of cut-outs according to the product characteristics in order to get b, b1 and c dimensions.
(1) For 2 and 3-way XAC A stations.
(2) For 4 to 8-way XAC A stations.
(3) With trigger action Emergency stop head operator
(4) Internal ø
Dimensions in mm
Number of cut-outs | 2 | 3 | 4 | 5 | 6 | 8 | 12 |
|---|---|---|---|---|---|---|---|
b | 314 | 314 | 440 | 440 | 500 | 560 | 680 |
b1 | 190 | 190 | 250 | 250 | 310 | 370 | 490 |
c | 80 | 80 | 80 | 80 | 80 | 80 | 92 |
Dimensions in in.
Number of cut-outs | 2 | 3 | 4 | 5 | 6 | 8 | 12 |
|---|---|---|---|---|---|---|---|
b | 12.36 | 12.36 | 17.32 | 17.32 | 19.68 | 22.05 | 26.77 |
b1 | 7.48 | 7.48 | 9.84 | 9.84 | 12.20 | 14.57 | 19.29 |
c | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.62 |
Connections and Schema
With ZBE2BE101 + ZB2BE102 contacts blocks, to be ordered separately
Performance Curves
Operating rate: 3600 operating cycles/hour. Load factor: 0.5.
Millions of operating cycles, AC-15 utilization category
Ithe Thermal current
(A) Current
Operating rate: 3600 operating cycles/hour. Load factor: 0.5.
Power broken in W for 1 million operating cycles, DC-13 utilization category
Voltage | V | 24 | 48 | 120 |
|---|---|---|---|---|
Inductive circuit | W | 65 | 48 | 40 |
