pendant control station XAC-A - 8 pushbuttons
Mfr. Part No.:
XACA881
APT Stock No.:
SE-XACA881
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 1,960.61
(Exc. VAT)
GHS 2,389.98
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Impact- and stain resistant enclosure for a sustained appearance despite rough usage conditions
Eliminates the need to drill multiple 22mm holes in the machine and system
Yellow enclosure, favoring visual contrast and visibility in dark conditions
Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product
Description

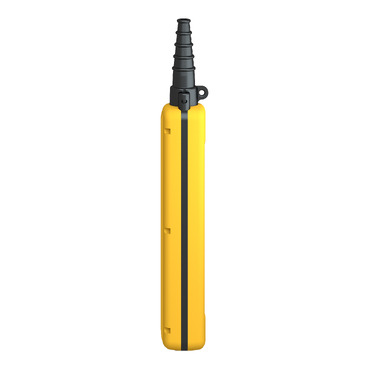

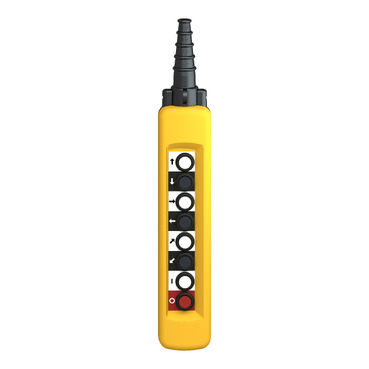

This Harmony XAC, is a complete ready to use pendant station for control of single-speed motors. It has 8 standard push buttons mechanically interlocked between pairs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Designed for mechanical handling, these highly robust pendant control stations are not only simple and intuitive, but also very comfortable for the operator to use. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides a yellow polypropylène double insulated enclosure. This control station is ideal for hoists, travelling cranes applications. This robust pendant control station complies with the safety requirements of IEC standards.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Harmony XAC |
| Product or component type | Pendant control station |
| Device short name | XACA |
| Complementary | |
|---|---|
| Control station type | Double insulated |
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| Enclosure type | Complete ready for use |
| Control station application | Control of single speed hoist motor |
| Control station composition | 8 push-buttons |
Dimensions Drawings
Below drawing shows a product with 6 cut-outs. Select the number of cut-outs according to the product characteristics in order to get b, b1 and c dimensions.
(1) For 2 and 3-way XAC A stations.
(2) For 4 to 8-way XAC A stations.
(3) With trigger action Emergency stop head operator
(4) Internal ø
Dimensions in mm
Number of cut-outs | 2 | 3 | 4 | 5 | 6 | 8 | 12 |
|---|---|---|---|---|---|---|---|
b | 314 | 314 | 440 | 440 | 500 | 560 | 680 |
b1 | 190 | 190 | 250 | 250 | 310 | 370 | 490 |
c | 80 | 80 | 80 | 80 | 80 | 80 | 92 |
Dimensions in in.
Number of cut-outs | 2 | 3 | 4 | 5 | 6 | 8 | 12 |
|---|---|---|---|---|---|---|---|
b | 12.36 | 12.36 | 17.32 | 17.32 | 19.68 | 22.05 | 26.77 |
b1 | 7.48 | 7.48 | 9.84 | 9.84 | 12.20 | 14.57 | 19.29 |
c | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.62 |
Connections and Schema
With ZBE2BE101 + ZB2BE102 contacts blocks, to be ordered separately
Performance Curves
Operating rate: 3600 operating cycles/hour. Load factor: 0.5.
Millions of operating cycles, AC-15 utilization category
Ithe Thermal current
(A) Current
Operating rate: 3600 operating cycles/hour. Load factor: 0.5.
Power broken in W for 1 million operating cycles, DC-13 utilization category
Voltage | V | 24 | 48 | 120 |
|---|---|---|---|---|
Inductive circuit | W | 65 | 48 | 40 |
