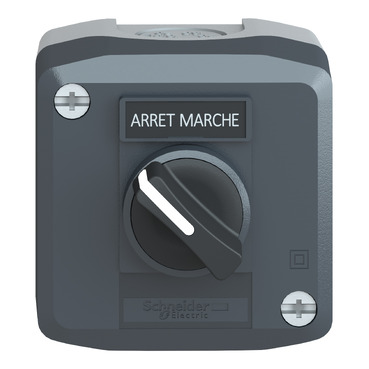

Harmony XALD, XALK, Control station, plastic, dark grey, 1 selector switch, Ø22, 1 NO, legend holder marked ARRET / MARCHE,
Mfr. Part No.:
XALD132
APT Stock No.:
SE-XALD132
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 337.11
(Exc. VAT)
GHS 410.94
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Full compatibility with the Ø 22 mm plastic push buttons, switches and pilot lights of the Harmony XB5 range
Complete, ready-to-install stations with 1 to 3 buttons for the most common functions
Modular system and simple to cable universal range
Possibility to add up to 3 NO or NC contact blocks per operating head
Polycarbonate pre-drilled control stations
Description
This Harmony XALD yellow control station for start/stop function is ideal for your complete control station. It operates with 2 positions stay put mechanism and uses screw-clamp terminals. This control station with flush push buttons is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Spare parts (1)
Specifications
| Main | |
|---|---|
| Range of product | Harmony XALD |
| Product or component type | Complete control station |
| Device short name | XALD |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Control station application | Start-Stop function |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Dark grey (RAL 7016) |
| Material | Polycarbonate |
| Operator profile | 1 selector switch with handle |
| Operators description | Standard handle ''ARRET-MARCHE'' 1 NO |
| Control station composition | 1 selector switch with standard handle 1 NO ARRET-MARCHE marking |
| Marking location | Marking on legend holder |
| Contact operation | Slow-break |
| Complementary | |
|---|---|

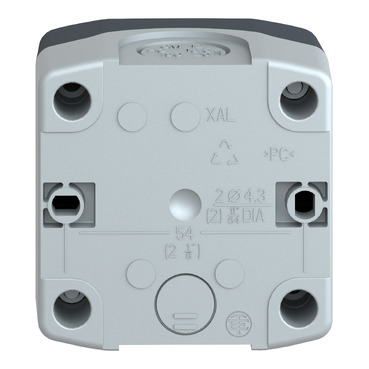

| Cable entry | 2 knock-outs for cable entry, clamping capacity: 14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| Net weight | 0.163 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Operator position information | 2 positions |
| Positive opening | Without |
| Operating travel | 4.3 mm (total travel) |
Dimensions Drawings
(1) 2 knock-outs for Pg 13.5 cable gland, maximum capacity 12 mm/0.47 in.
(2) Knock-out for cable entry, maximum capacity 14 mm/0.55 in.
Control station fitted with: | c in mm | c in in. |
|---|---|---|
Flush pushbutton | 62 | 2.44 |
Pilot light | 64 | 2.52 |
Illuminated pushbutton | 65.5 | 2.58 |
Projecting pushbutton | 66 | 2.60 |
Selector switch | 80 | 3.15 |
Mushroom head pushbutton | 91.5 | 3.58 |
Latching mushroom head Emergency stop pushbutton wit h key | 115 | 4.53 |
Key switch | 105.5 | 4.15 |
