empty control station - XAP-A - plastic - without opening
Mfr. Part No.:
XAPA1100
APT Stock No.:
SE-XAPA1100
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 558.96
(Exc. VAT)
GHS 681.37
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Empty stations for customer assembly with 1 to 10 holes depending on the model
Operating simplicity, flexibility, and robustness
Full compatibility with Harmony XB4 or Harmony XB5 pushbutton ranges
Metal offer for use in a wide range of environments
Pre-drilled or undrilled zinc or aluminium alloy enclosures
Description

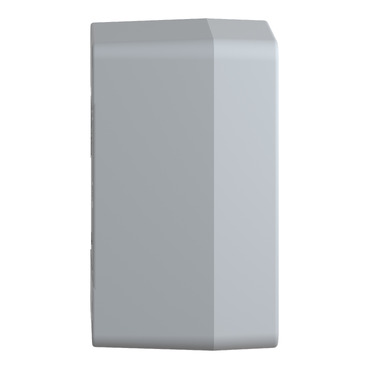

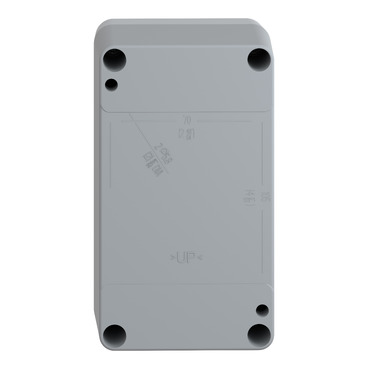

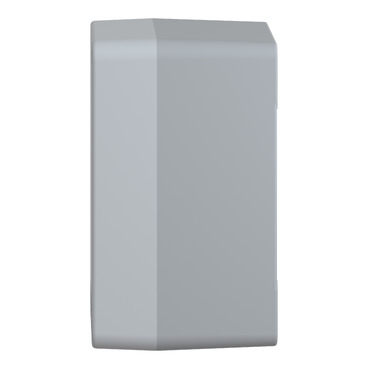

This is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4. This Harmony XAPA1100 is an empty plastic control station without opening and without hinges. It is impact resistant, dust resistant, water resistant and vibration resistant. This insulated enclosure is highly resistant to acids, bases, sea water, mineral salts, all solvants, petrol, diesel, oils and greases. Its protection index is IP65. It is made of glass-reinforced polyester material. It weighs 0.470Kg with dimensions 85mm wide, 146mm height, 87mm deep. It is compatible with Harmony XB4 range of control and signalling units.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Harmony XAP |
| Product or component type | Empty control station without hinges |
| Device short name | XAPA |
| Product front plate size | 85 x 146 mm |
| Usable depth | 83 mm |
| Number of cut-out | Undrilled |
| Colour of base of enclosure | Grey |
| Colour of cover | Grey |
| Material | Glass reinforced polyester |
| Cable entry | Undrilled |
| Device mounting | Flush |
| IP degree of protection | IP65 conforming to IEC 60529 IP69 conforming to NF C 20-010 IP69K |
| Resistance to chemical agents | High resistant to acids High resistant to all solvents High resistant to bases High resistant to diesel High resistant to mineral salts High resistant to oils and greases High resistant to petrol High resistant to sea water |
| Complementary | |
|---|---|
| Net weight | 0.47 kg |
| Flame retardance | M3 conforming to CSTB VO conforming to UL 94 |
Dimensions Drawings
a | b | G | H | ||||
|---|---|---|---|---|---|---|---|
mm | in. | mm | in. | mm | in. | mm | in. |
85 | 3.35 | 146 | 5.75 | 70 | 2.76 | 105 | 4.13 |
